250027.1 Polyvinyl Chloride (PVC) Conduit

Click here for a PDF of this Material Standard

Revision 18
Jul 12, 2018

1. Scope

This material standard covers the requirements for rigid nonmetallic PVC conduit for underground electrical power wire and cable applications. Sizes, types and quantities of conduit shall be as specified in the Special Provision Sheet.

2. Material ID Numbers

This material standard applies to the PVC conduits identified by the following District Material ID Numbers:



Table 1: Conduit Sizes and Types
MID Nominal Size (in) Length (ft) NEMA Standard Type Deep Socket Integral Bell End Nominal Weight (lb/100 ft) Max. Bundle Size (ft)
250027 1 20 TC-2 Sch 40 Yes, 1-End 34 -
1001852 2 20 TC-2 Sch 40 Yes, 1-End 73 2800
250043 2-1/2 20 TC-2 Sch 40 Yes, 1-End 124 930
1001900 3 20 TC-2 Sch 40 Yes, 1-End 163 1760
1001992 4 20 TC-2 Sch 40 Yes, 1-End 232 1140
1002213 6 20 TC-2 Sch 40 Yes, 1-End 409 520
250093 4 20 TC-6 DB-60 Yes, 1-End 133 1140
250126 6 20 TC-6 DB-60 Yes, 1-End 288 520
250035 1 10 TC-2 Sch 80 Yes, 1-End 44 2400
250069 2 10 TC-2 Sch 80 Yes, 1-End 101 1400
250085 3 10 TC-2 Sch 80 Yes, 1-End 210 880
250100 4 10 TC-2 Sch 80 Yes, 1-End 308 570
250118 6 10 TC-2 Sch 80 Yes, 1-End 588 260
240929 2 10 TC-2 Sch 40, Split None - -
1002056 2-1/2 10 TC-2 Sch 40, Split None - -
240937 3 10 TC-2 Sch 40, Split None - -
240945 4 10 TC-2 Sch 40, Split None - -
240961 6 10 TC-2 Sch 40, Split None - -

3. Reference Standards

Except as modified herein, PVC conduit shall meet the applicable requirements of the latest revisions of the following standards:

ASTM F-512Smooth-Wall Poly (Vinyl Chloride) (PVC) Conduit and Fittings for Underground Installation
NEMA TC-2 Electrical Plastic Tubing (EPT) and Conduit (EPC-40 and EPC-80)
NEMA TC-6PVC and ABS Plastic Utilities Duct for Underground Installation
UL 651 UL Standard for Safety Schedule 40 and 80 Rigid PVC Conduit and Fittings

4. Conduit Classification

This material standard covers the following types of PVC conduit:

Type DB-60 Designed for direct burial and for concrete encased applications.
Type EPC-40 Designed for normal-duty applications above ground, for all concrete encased applications and for direct burial. (Schedule 40 IPS)
Type EPC-80 Designed for heavy-duty applications above ground, for all concrete encased applications and for direct burial. (Schedule 80 IPS)

5. Split Conduit

Conduit specified as “split” type is used to repair broken duct without the need to cut and splice conductors. Split conduit shall be halved longitudinally and each half shall feature an interlocking tongue-and-groove joint the entire length of the longitudinally cut edges.

6. PVC Conduit for Directional Bores

PVC conduit for horizontal directional drilling applications shall be Schedule 40 or Schedule 80 and feature mechanically restrained, waterproof joints. The conduit shall conform to NEMA TC-2 and UL651 requirements. Currently, only PVC conduits manufactured under the Bore-Gard®, Can>Loc™, or Certa-Com® trademarks are acceptable for directional bore use at the District.

7. Materials

Conduit shall be made from virgin PVC plastic compound conforming to the requirements of its respective standard. Reground material from the manufacturer’s own pipe products may be used by the manufacturer provided the end product is equal in quality to pipe from virgin material.

8. Color

Conduit shall be medium gray to dark gray in color.

9. Temperature

All conduit shall be rated for use with 90ºC wire and cable.

10. Workmanship

Conduit shall be homogeneous throughout, and free from visible cracks, holes, burrs, foreign inclusions, or other defects that could damage cable or conductor. Conduit shall be as uniform as is commercially practical in color, opacity, density and other physical properties.

11. Dimensions

All conduit shall be manufactured in accordance with the dimensions, tolerances and stiffness values prescribed in its respective standards as referenced in Table 1 of this material standard, except as otherwise specified herein.

12. Ends

12.1 With the exception of split conduit, for which both ends shall be non-belled (plain), conduit supplied under this material standard shall have one integral deep socket belled end and one plain end.

12.2 The deep socket belled end socket depth shall be in accordance with the dimensions specified in Table 2:

Nominal Conduit
Size (in)		 Nominal Socket
Depth (in)
1 1.750 - 2.250
2 3.250 - 3.500
2-1/2 3.250 - 3.500
3 3.875 - 4.000
4 4.625 - 4.750
6 6.250 - 6.375

13. Chamfer

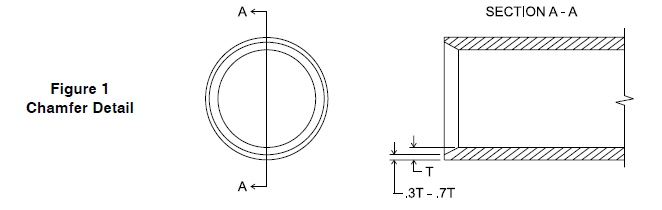

Type EPC (Schedules 40 and 80) conduit shall be finished with a symmetrical chamfer inside the non-belled end in accordance with Figure 1 and Tables 3 and 4 below. Exceptions to this requirement are 1" and 2-1/2" Schedule 40, 1" Schedule 80 and all sizes of Schedule 40 split conduit; chamfering is acceptable, but is not required for these conduits.

Table 3 - Schedule 40 PVC
Nominal
Conduit
Size (in)		 Wall Thickness (in) After Chamfer Cut
Min Wall (in) Max Wall (in)
Min. Max. 0.3T 0.7T 0.3T 0.7T
1 0.133 0.153 0.040 0.093 0.046 0.107
2 0.154 0.174 0.046 0.108 0.052 0.122
2-1/12 0.203 0.227 0.061 0.142 0.068 0.159
3 0.216 0.242 0.065 0.151 0.073 0.169
4 0.237 0.265 0.071 0.166 0.080 0.186
6 0.280 0.314 0.084 0.196 0.094 0.220



Table 4 - Schedule 80 PVC
Nominal
Conduit
Size (in)		 Wall Thickness (in) After Chamfer Cut
Min Wall (in) Max Wall (in)
Min. Max. 0.3T 0.7T 0.3T 0.7T
1 0.179 0.200 0.054 0.125 0.060 0.140
2 0.218 0.244 0.065 0.153 0.073 0.171
2-1/12 0.276 0.309 0.083 0.193 0.093 0.216
3 0.300 0.336 0.090 0.210 0.101 0.235
4 0.337 0.377 0.101 0.236 0.113 0.264
6 0.432 0.484 0.130 0.302 0.145 0.339



14. Inspection

The DISTRICT deserves the right to inspect all conduit either at the manufacturer’s plant or upon receipt. Damaged conduit or conduit not meeting this material standard will be rejected and returned at the supplier’s expense.

15. Packaging

15.1 Conduit shall be packaged to protect it from damage during shipment, handling and subsequent storage.

15.2 Conduit shall be packaged in units not to exceed 5 feet in width and no less than 1 foot nor greater than 4 feet in height. The packaging unit may be less than 1 foot in height for small quantities of 1" and 2-1/2" Schedule 40, 1" Schedule 80 and all sizes of Schedule 40 split conduit, as these conduits are sometimes purchased in small quantities. Packaged units shall have provisions for handling with fork lifting equipment.

15.3 Conduit bundle sizes shall not exceed the sizes shown in Table 1 of this material standard.

15.4 The two halves of each 10 ft length of split repair conduit section shall be temporarily fastened together for shipping.

16. Delivery

Conduit shall be delivered on open, flatbed type trucks or trailers; it “shall not” be delivered in closed type vans or trailers. Exceptions to this requirement may be allowed for 1" and 2-1/2" Schedule 40, 1" Schedule 80 and all sizes of Schedule 40 split conduit, as these conduits are typically purchased in small quantities. Vendors interested in the acceptability of shipping specific orders of these “exception” conduits in enclosed vans or trailers shall check with the District’s buyer on a case-by-case basis.

17. Marking

All required markings shall be legible and so applied as to remain legible under normal handling and installation practices. Each length of conduit shall be marked with the following at intervals of 5 feet or less:

  1. (1) Manufacturer’s name or trademark
  2. (2) Nominal size
  3. (3) Material (PVC)
  4. (4) Standard designation (for example, NEMA TC-2)
  5. (5) Type (for example, Schedule 40)
  6. (6) With the exception of split conduit, all conduit provided under this material standard shall be marked with the designation: "maximum 90ºC wire," "max. 90ºC wire" or equivalent phraseology.
  7. (7) Any additional marking the manufacturer deems necessary is permitted.

18. General Bidding Conditions

The attached General Bidding Conditions are made a part of this material standard.

19. Evaluation of Bids

The following factors will be considered in the analysis and evaluation of bids and subsequent bid award:

  1. (1) Past performance of bidder and product
  2. (2) Completeness of bidder’s data
  3. (3) Conditions of warranty
  4. (4) Proposed delivery
  5. (5) Initial cost and escalations
