Z0670-98 - Mini-Wedge Connectors

Compatible Unit	Conductor Size		Amp #	Qty	MID
	Run	Tap
Z0670	#6 Sol. - #6 Str.	#12 Sol. - #10 Str.	83016-3	1	212704
Z0672	#6 Str. - #4 Sol.	#12 Sol. - #10 Str.	83016-2	1	212746
Z0674	#4 Sol. - #4 Str.	#6 Str. - #4 Sol.	1-83016-0	1	212754
Z0675	#2 Sol.	#4 Sol.	1-83016-2	1	1000826
Z0676	#2 Sol.	#2 Sol.	1-83016-3	1	1000827
Z0677	1/0 Str.	#6 Sol. - #4 Str.	81713-3	1	1001374

ALUMINUM MINI-WEDGE CONNECTORS

Compatible Unit	Conductor Size		Amp #	Qty	MID
	Run	Tap
Z0680	#6 Sol. - #4 Sol.	#6 Str.	1-83592-0	1	212796
Z0682	#2 Str.	#14 Sol. - #10 Str.	83630-3	1	212803
Z0683	#2 Str.	#6 Sol. - #4 Sol.	83592-7	1	212811
Z0684	#2 Str.	#2 Sol. - #2 Str.	83592-5	1	212829
Z0686	1/0 Str.	#2 Str.	83592-2	1	212837
Z0687	1/0 Str.	1/0 Str.	83592-1	1	1002271
Z0688	2/0 Str.	#2 Str.	83631-7	1	212845
Z0690	3/0 Str.	#14 Sol. - #10 Str.	83623-5	1	212879
Z0691	3/0 Str.	#6 Sol. - #4 Sol.	83623-7	1	212887
Z0691A	3/0 Str.	#4 Str. - #2 Sol.	83623-8	1	1001442
Z0692	3/0 Str.	#2 Str.	83631-4	1	212895
Z0693	3/0 Str.	1/0 Str.	83631-5	1	212902
Z0694	3/0 Str.	2/0 Str.	83631-6	1	212910
Z0696	4/0 Str.	#2 Str.	83631-1	1	212928
Z0697	336.4 kcmil AAC	#14 Sol. - #10 Str.	1-83623-7	1	212952
Z0698	336.4 kcmil AAC	#6 Sol. - #2 Sol.	1-83623-9	1	212960



Notes:

1. Mini-wedge connectors shall only be used for low-tension secondary connections at a customer's service entrance. Primary connections shall use compression connectors or powder-actuated wedges.
2. Copper mini-wedge connectors are suitable for copper-to-copper connections only. Aluminum mini-wedges are suitable for aluminum-to-aluminum and aluminum-to-copper connections.

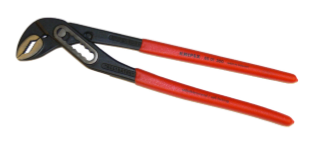

3. Mini-wedge connectors are best installed with Knipex "Alligator" channel lock pliers (MID 1002272).
4. Mini-wedge connectors can be removed by cutting the locking tab on the C-member and pushing out the wedge.
