Z0601-20 H-Type Al Compression Connectors
Revision 5
Aug 30, 2012
| Compatible Unit | Fig. | Conductor Range | Die | Qty | MID | ||
|---|---|---|---|---|---|---|---|
| Groove A | Groove B | ||||||

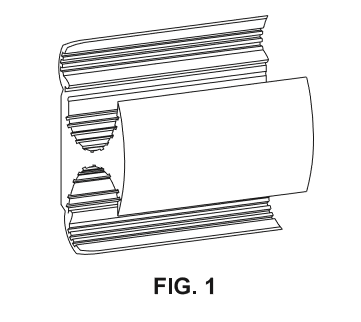

| Z0601 | 1 | #6 - #1 #6 - #2 |
STR ACSR |
#6 - #1 #6 - #2 |
0 | 1 | 211011 |
| Z0602 | 1 | #1 - 1/0 #3 - 2/0 #3 - 1/0 |
SOL STR ACSR |
#6 - 1/0 #6 - #1 #6 - #2 |
0 | 1 | 211029 |
| Z0603 | 1 | ---- 2/0 - 3/0 1/0 - 2/0 |
SOL STR ACSR |
#6 - 1/0 #6 - #1 #6 - #2 |
D | 1 | 211037 |
| Z0604 | 1 | #1 - 3/0 #1 - 2/0 |
STR ACSR |
#1 - 2/0 #1 - 2/0 |
D | 1 | 211045 |
| Z0605 | 1 | ---- 4/0 3/0 - 4/0 |
SOL STR ACSR |
#6 - #2 #6 - #1 #6 - #2 |
D | 1 | 211053 |
| Z0606 | 1 | 3/0 - 4/0 3/0 - 4/0 |
STR ACSR |
#1 - 2/0 #1 - 2/0 |
D | 1 | 211061 |
| Z0607 | 1 | 3/0 - 4/0 3/0 - 4/0 |
STR ACSR |
3/0 - 4/0 3/0 - 4/0 |
D | 1 | 211079 |
| Z0608 | 1 | ---- 4/0 - 500 4/0 - 477 |
SOL STR ACSR |
#6 - #2 #2 - 2/0 #2 - 2/0 |
N | 1 | 211087 |
| Compatible Unit | Fig. | Conductor Range | Die | Qty | MID | ||
|---|---|---|---|---|---|---|---|
| Groove A | Groove B | ||||||

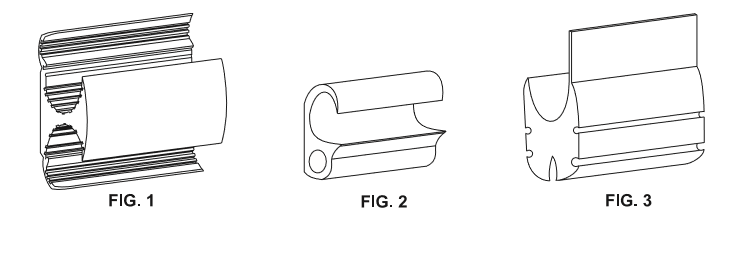

| Z0609 | 1 | 336.4 - 500 336.4-477 |
STR ACSR |
#2 - 2/0 #2 - 1/0 |
N | 1 | 211095 |
| Z0610 | 1 | ---- 250 - 500 266 - 477 |
SOL STR ACSR |
---- 2/0 - 4/0 2/0 - 4/0 |
N | 1 | 211102 |
| Z0611 | 1 | ---- 4/0 - 500 4/0 - 477 |
SOL STR ACSR |
---- 4/0 - 500 4/0 - 477 |
N | 1 | 211110 |
| Z0613 | 1 | ---- 266.8 - 750 266.8 - 795 |
SOL STR ACSR |
---- 1/0 - 4/0 1/0 - 4/0 |
R or HOMAC Z |
1 | 211136 |
| Single Tab for Hotline Work | |||||||
| Z0618 | 2 | ---- 250 - 400 266.8 - 397.5 |
SOL STR ACSR |
---- 250 - 400 266.8 - 397.5 |
N | 1 | 211186 |
| Z0619 | 3 | ---- #1 - 2/0 #2 - 1/0 |
SOL STR ACSR |
#14 - #7 #14 - #8 ---- |
O | 1 | 211194 |
| Z0620 | 3 | #4 - #2 #6 - #2 #6 - #4 |
SOL STR ACSR |
#14 - #8 #14 - #8 ---- |
5/8 | 1 | 211201 |
