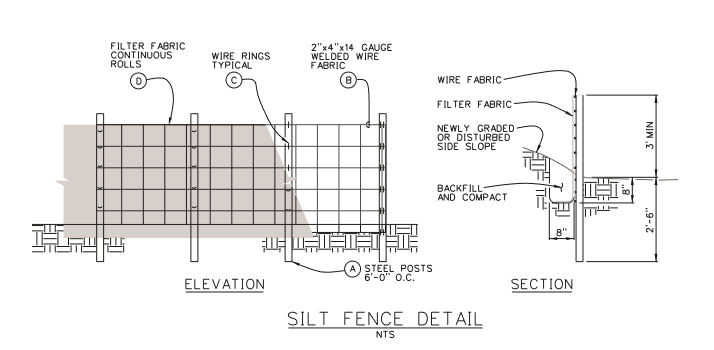

Y0101-4 - Silt Fence Materials
Revision 1
Jul 19, 2007
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| Y0101 | A | Post, Fence, “Studded Tee”, 6’ Heavy Duty Steel “without” Anchor Plates |
1 | 1000878 |
| Y0102 | B | Fence, Fabric, Welded Wire, Steel, 14 GA. 2” x 4” Openings, 48” x 100’ Roll |
1 ft | 1000888 |
| Y0103 | C | Ring, Wire, Fastener, Wire Fence-to-Studded Tee Fence Post |
1 | 1000889 |
| Y0104 | D | Fabric, Geotextile, Woven w/ AOS of 70, 6’ x 300’ Roll | 1 ft | 1000831 |
Notes:
- Refer to T&D Guideline 4-18-5.0 for application guidelines for using these fencing materials for erosion and sedimentation control.
- Normal fence post spacing is 6’-0”.
- Typical wire ring fastener requirements are 5 per fence post.
- Fence post drivers (MID 1000884) are available from District warehouses.
