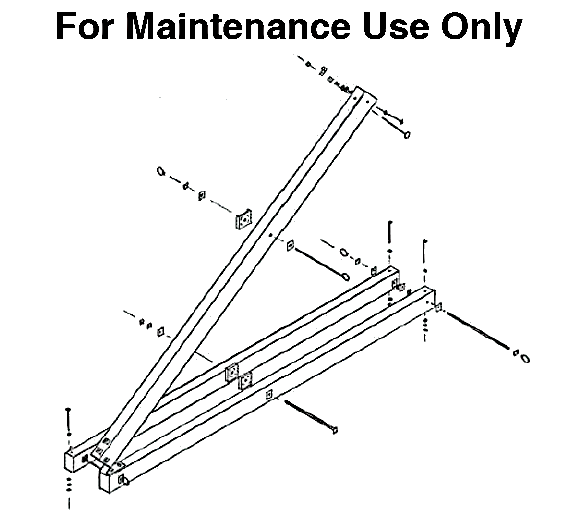

X1102 - 14' 115kV Wishbone Double Deadend
Revision 3
Nov 1, 2016
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X1102 | Bolt, Machine 5/8" x 18" | 1 | 120238 |
| Bolt, Machine 1/2" x 6" | 2 | 123802 | |
| Bolt, Machine 1/2" x 10" | 3 | 123852 | |
| Bolt, Machine 5/8" x 10" | 4 | 124173 | |
| Bolt, Machine 3/4" x 26" | 1 | 124660 | |
| Bolt, DA 3/4" x 28" | 2 | 126137 | |
| Washer, Galv Double Coil Spring Lock, 1/2" | 5 | 1001444 | |
| Washer, Galv Double Coil Spring Lock, 5/8" | 5 | 1001443 | |
| Washer, Galv Double Coil Spring Lock, 3/4" | 2 | 1001445 | |
| Washer, 1/2" Round | 10 | 196461 | |
| Crossarm, Wood 4-3/4" x 7-1/2" x 14' Precut (Top) | 1 | 873481 | |
| Crossarm, Wood 4-3/4" x 7-1/2" x 14' Precut (Bottom) | 2 | 873499 | |
| Bolt, Shoulder Eye 3/4" x 10" | 1 | 875891 | |
| Nut, Eye 5/8" | 1 | 893512 | |
| Nut, Eye 3/4" | 4 | 893520 | |
| No. 2 Grid Gain Plate | 3 | 896821 | |
| Crossarm Connection Plate | 1 | 896962 | |
| Washer, Curved #2 | 1 | 910019 | |
| Washer, Square 5/8" | 5 | 910267 | |
| Washer, Square 3" | 12 | 910275 | |
| Washer, Spring 11/16" | 4 | 910332 | |
| Washer, Spring 13/16" | 2 | 910340 |
