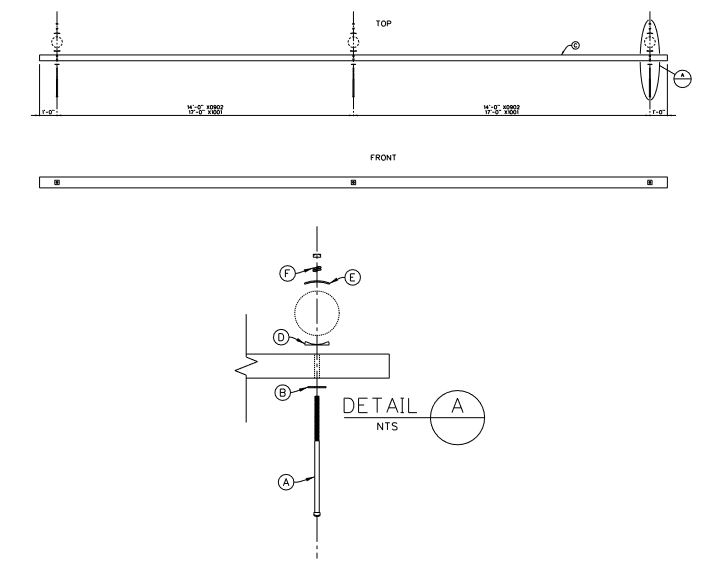

X0902-X1001 - Three Pole 115kV Large Angle
Revision 3
Aug 16, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0902 | A | Bolt, Machine 3/4" x 20" | 3 | 124636 |
| B | Washer, Galv Sq 3" Flat 13/16" Hole | 3 | 910275 | |
| C | Crossarm, Fiberglass 4" x 7-1/2" x 30' | 1 | 873605 | |
| D | Gain, Crossarm Steel 4" x 5-1/4" | 3 | 896871 | |
| E | Washer, Galv Sq 4" Curved 15/16" Hole | 3 | 910027 | |
| F | Washer, Galv Double Coil Spring Lock 3/4” Hole | 3 | 1001445 | |
| X1001 | A | Bolt, Machine 3/4" x 20" | 3 | 124636 |
| B | Washer, Galv Sq 3" Flat 13/16" Hole | 3 | 910275 | |
| C | Crossarm, Fiberglass 4" x 7-1/2" x 36' | 1 | 873613 | |
| D | Gain, Crossarm Steel 4" x 5-1/4" | 3 | 896871 | |
| E | Washer, Galv Sq 4" Curved 15/16" Hole | 3 | 910027 | |
| F | Washer, Galv Double Coil Spring Lock 3/4” Hole | 3 | 1001445 |
