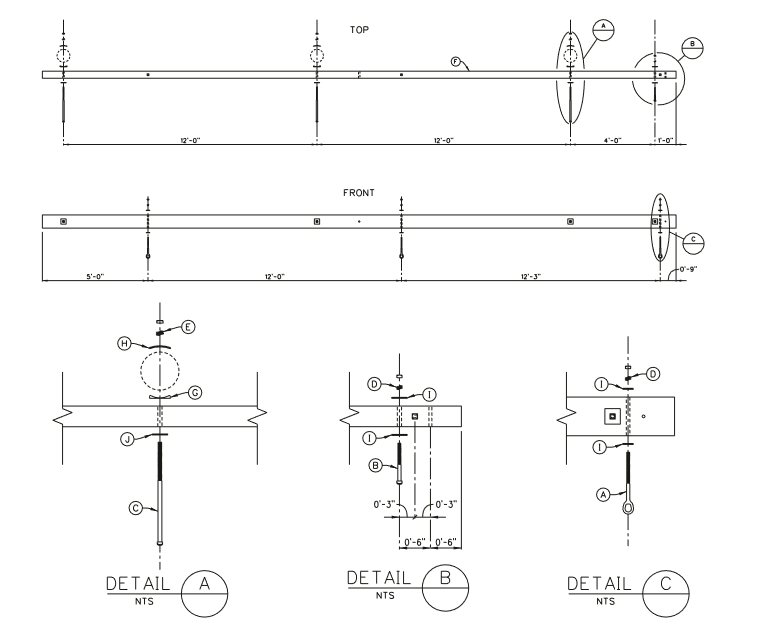

X0901 - 30' Double Deadend 115kV Three Pole
Revision 3
Aug 16, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0901 | A | Bolt, Eye 5/8" x 12" | 3 | 120204 |
| B | Bolt, Machine 5/8" x 8" | 1 | 124157 | |
| C | Bolt, Machine 3/4" x 20" | 3 | 124636 | |
| D | Washer, Galv Double Coil Spring Lock 5/8" Hole | 4 | 1001443 | |
| E | Washer, Galv Double Coil Spring Lock 3/4" Hole | 3 | 1001445 | |
| F | Crossarm, Fiberglass 4" x 7-1/2" x 30' | 1 | 873605 | |
| G | Gain, Crossarm Steel 4" x 5-1/4" | 3 | 896871 | |
| H | Washer, Galv Sq 4" Curved 15/16" Hole | 3 | 910027 | |
| I | Washer, Galv Sq 2" Flat 11/16" Hole | 8 | 910267 | |
| J | Washer, Galv Sq 3" Flat 13/16" Hole | 3 | 910275 |
