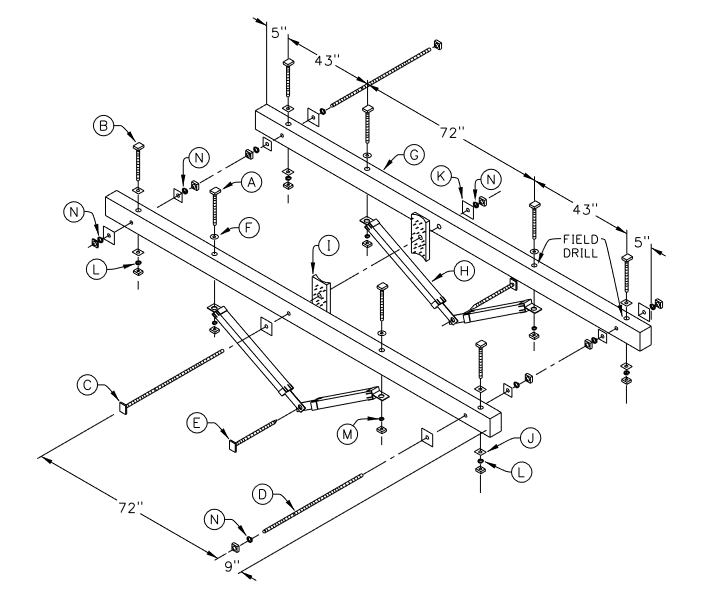

X0806 - 14' Double Arm Deadend for 115kV Triangular Framing
Revision 6
Nov 1, 2016
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0806 | A | Bolt, Machine 1/2" x 10" | 4 | 123852 |
| B | Bolt, Machine 5/8" x 10" | 4 | 124173 | |
| C | Bolt, Machine, 3/4" x 26" | 1 | 124660 | |
| D | Bolt, DA 3/4" x 28" | 2 | 126137 | |
| E | Screw, Lag 5/8" x 5" | 2 | 163999 | |
| F | Washer, Galv Rd 1-3/8" Flat 9/16" Hole | 4 | 196461 | |
| G | Crossarm, Wood 14'-0" x 4-3/4" x 7-1/2" | 2 | 873499 | |
| H | Brace, Crossarm Wood 42" | 4 | 876203 | |
| I | Gain, Crossarm Spiked #3 | 2 | 896839 | |
| J | Washer, Galv Sq 2" Flat 11/16" Hole | 8 | 910267 | |
| K | Washer, Galv Sq 3" Flat 13/16" Hole | 10 | 910275 | |
| L | Washer, Galv Double Coil Spring Lock 5/8" | 4 | 1001443 | |
| M | Washer, Galv Double Coil Spring Lock, 1/2" | 4 | 1001444 | |
| N | Washer, Galv Double Coil Spring Lock, 3/4" | 9 | 1001445 |
