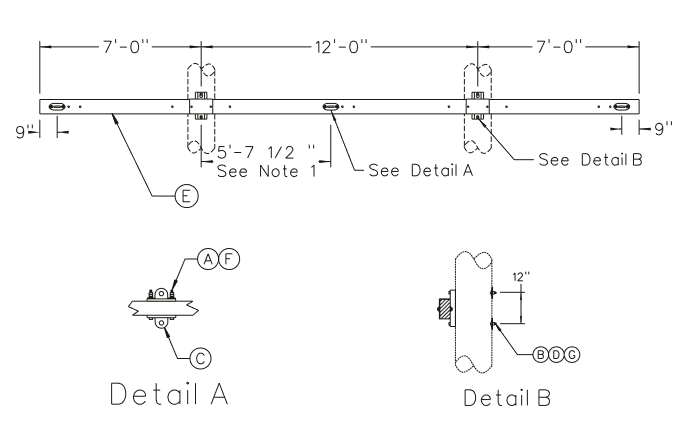

Z0793 - 26' Fiberglass Crossarm Double Deadend 115kV H-Frame
Revision 0
Oct 9, 2013
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0793 | A | Bolt, Machine 5/8" x 6" | 6 | 124123 |
| B | Bolt, Machine 3/4" x 18" | 4 | 124610 | |
| C | Tee, Deadend #2817 | 6 | 905987 | |
| D | Washer, Galv Sq 3" Curved 13/16" Hole | 4 | 910019 | |
| E | Crossarm, Fiberglass 26' H-Frame | 1 | 1000960 | |
| F | Washer, Galv Double Coil Spring Lock 5/8” | 6 | 1001443 | |
| G | Washer, Galv Double Coil Spring Lock 3/4” | 4 | 1001445 |
Notes:
- enter phase support may be installed in pre-drilled hole 3" either side of center.
- 26' fiberglass crossarm may be used to replace a wood crossarm on existing H-frame structures. Refer to maintenance only Compatible Unit X0803.
- 26' fiberglass crossarms are rated for the following maximum working loads per position:
Vertical 5,000 lb Longitudinal 2,000 lb Transverse 3,000 lb
