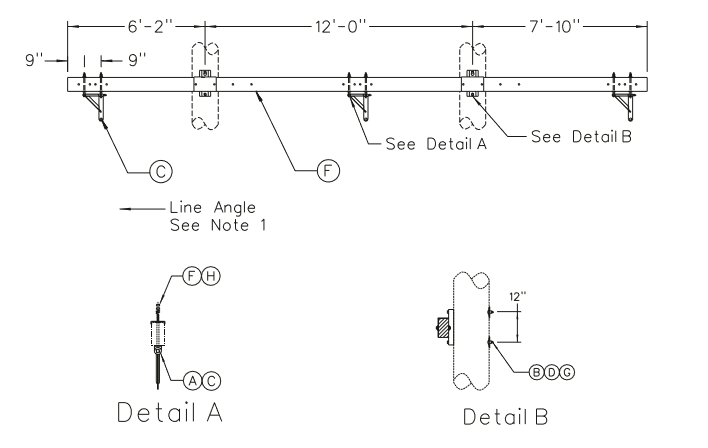

X0792 - 26' Fiberglass Crossarm, 115kV H-Frame Small Angle
Revision 1
Jan 8, 2015
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0792 | A | Bolt, Oval Eye 5/8" x 10" | 6 | 120197 |
| B | Bolt, Machine 3/4" x 18" | 4 | 124610 | |
| C | Bracket, Swinging Angle | 3 | 877152 | |
| D | Washer, Galv Sq 3" Curved 13/16" Hole | 4 | 910019 | |
| E | Crossarm, Fiberglass 26' H-Frame | 1 | 1000960 | |
| F | Washer, Galv Double Coil Spring Lock 5/8” | 6 | 1001443 | |
| G | Washer, Galv Double Coil Spring Lock 3/4” | 4 | 1001445 | |
| H | Plate, Crossarm Reinforcing 4-3/4" x 4" | 6 | 1001572 |
Notes:
- Shift crossarm in the opposite direction of the line angle by relocating both pole mounting brackets to adjacent predrilled holes.
- 26' fiberglass crossarm may be used to replace a wood crossarm on existing H-frame structures. Refer to maintenance only Compatible Unit X0802.
- 26' fiberglass crossarms are rated for the following maximum working loads per position:
Vertical 5,000 lb Longitudinal 2,000 lb Transverse 3,000 lb
