X0791 - 26' Fiberglass Crossarm, 115kV H-Frame Tangent
Revision 1
Jan 8, 2015

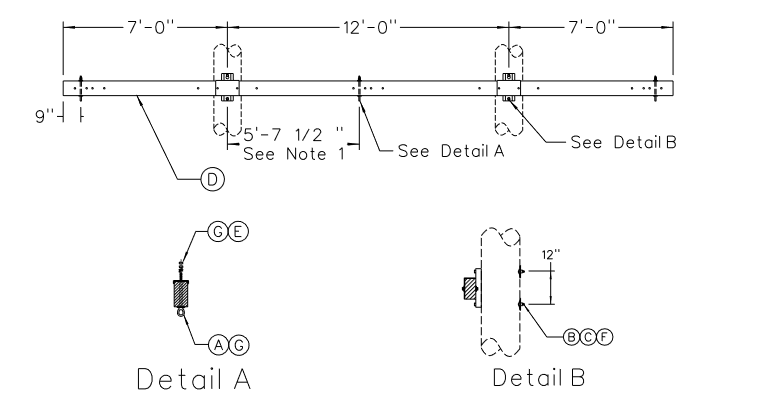

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0791 | A | Bolt, Oval Eye 5/8" x 10" | 3 | 120197 |
| B | Bolt, Machine 3/4" x 18" | 4 | 124610 | |
| C | Washer, Galv Sq 3" Curved 13/16" Hole | 4 | 910019 | |
| D | Crossarm, Fiberglass 26' H-Frame | 1 | 1000960 | |
| E | Washer, Galv Double Coil Spring Lock 5/8” | 3 | 1001443 | |
| F | Washer, Galv Double Coil Spring Lock 3/4” | 4 | 1001445 | |
| G | Plate, Crossarm Reinforcing 4-3/4" x 4" | 6 | 1001572 |
Notes:
- Center phase support may be installed in one of two pre-drilled holes 4-1/2" either side of center.
- 26' fiberglass crossarm may be used to replace a 26' wood crossarm on existing H-frame structures. Refer to maintenance only Compatible Unit X0801.
- 26' fiberglass crossarms are rated for the following maximum working loads per position:
Vertical 5,000 lb Longitudinal 2,000 lb Transverse 3,000 lb
