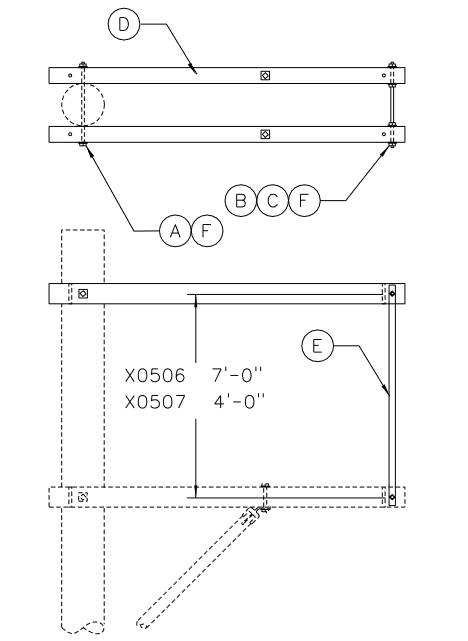

X0506-7 - Second Double 7' 2 Steel Pin Alley Arm *Maintenance Only*
Revision 2
Jan 22, 2021
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0506 | A | Bolt, Machine 5/8" x 20" | 1 | 124248 |
| B | Bolt, DA 5/8" x 20" | 1 | 125965 | |
| C | Washer, Galv Rd 1-3/4" Flat 11/16" Hole | 4 | 196479 | |
| D | Crossarm, Wood 2-Pin 7' | 2 | 872558 | |
| E | Brace, Galv Alley Arm 7' | 2 | 876568 | |
| F | Washer, Galv Sq 2" Flat 11/16" Hole | 6 | 910267 | |
| X0507 | A | Bolt, Machine 5/8" x 20" | 1 | 124248 |
| B | Bolt, DA 5/8" x 20" | 1 | 125965 | |
| C | Washer, Galv Rd 1-3/4" Flat 11/16" Hole | 4 | 196479 | |
| D | Crossarm, Wood 2-Pin 7' | 2 | 872558 | |
| E | Brace, Galv Alley Arm 4' | 2 | 876617 | |
| F | Washer, Galv Sq 2" Flat 11/16" Hole | 6 | 910267 |
