X0300-D - 7' Tangent Fiberglass Crossarm
Revision 1
Jun 9, 2023

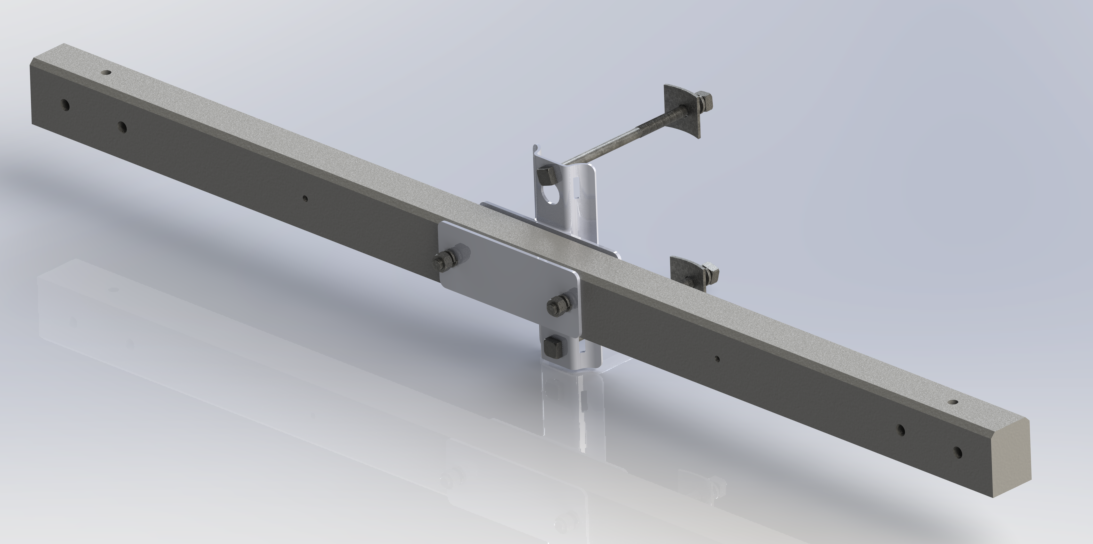

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0300 | A | Bolt, Machine 3/4" x 14" | 2 | 124595 |
| B | Crossarm, 7' Tangent Fiberglass | 1 | 5003130 | |
| C | Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| D | Washer, Galv Double Coil Spring Lock 3/4" | 2 | 1001445 |

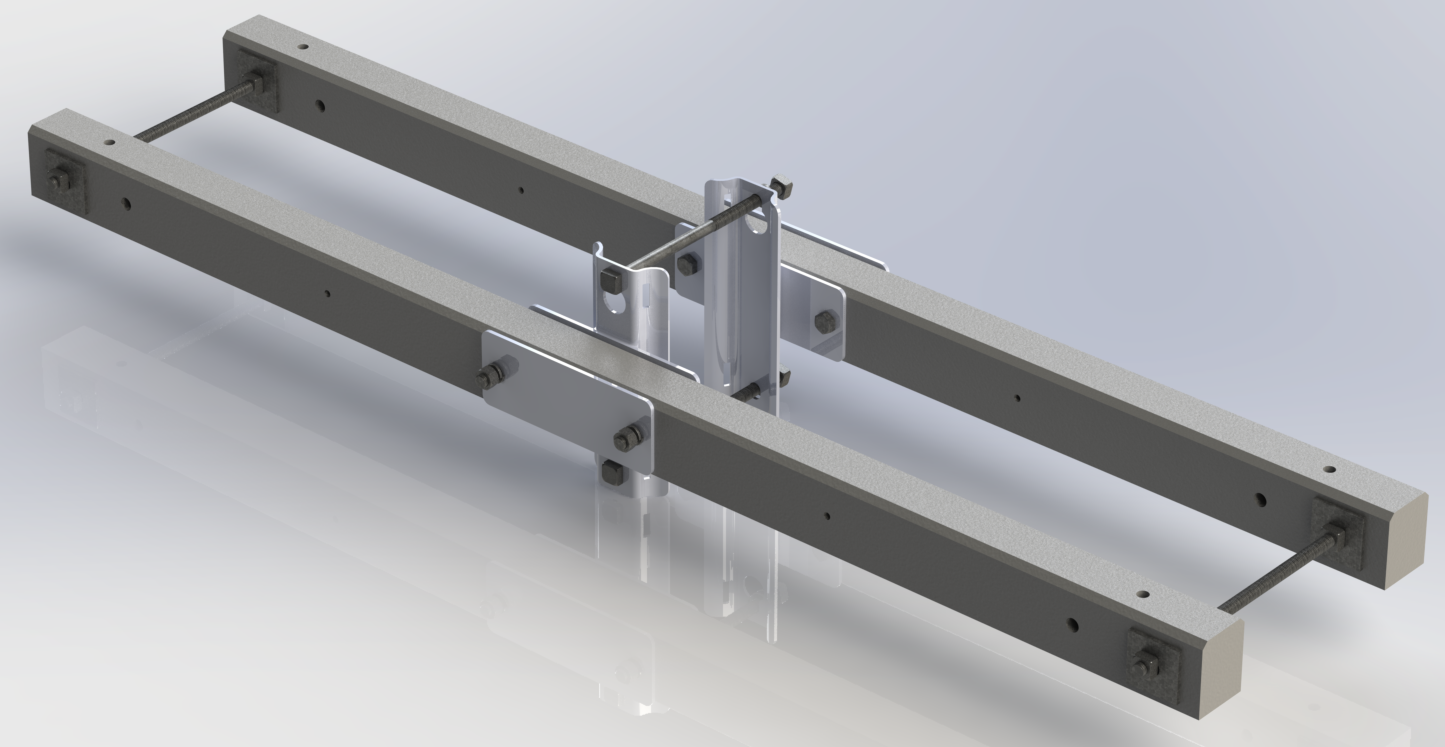

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0300D | A | Bolt, Machine 3/4" x 14" | 2 | 124595 |
| B | Crossarm, 7' Tangent Fiberglass | 1 | 5003130 | |
| C | Washer, Galv Sq 3" Flat 13/16" Hole | 8 | 910275 | |
| D | Washer, Galv Double Coil Spring Lock 3/4" | 2 | 1001445 | |
| E | Bolt, DA 3/4" x 22" | 2 | 1001585 |
