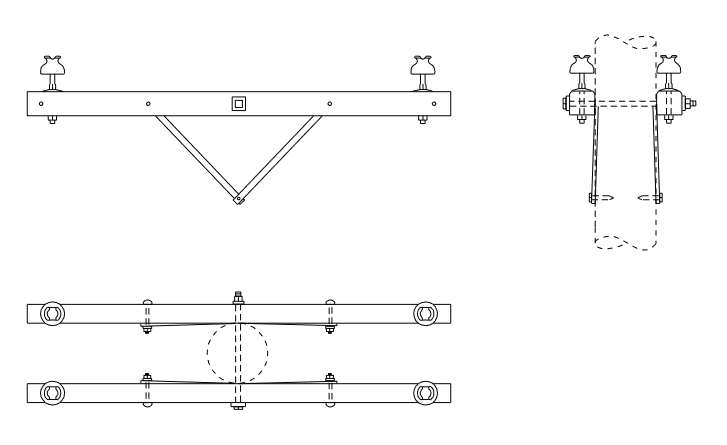

X0122 - Double 7' 2 Steel Pin Crossarm w/ Insulators
Revision 3
Mar 19, 2012
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0122 | 7' 2 Steel Pin Crossarm | 2 | 872558 |
| 5/8" x 20" Machine Bolt | 3 | 125981 | |
| 1/2" x 4" Lag Screw | 2 | 163816 | |
| 5/8" Square Washer | 10 | 910267 | |
| Steel Pin | 4 | 895039 | |
| 1177 Insulator | 4 | 935033 | |
| 5/8" Double Spring Washer | 5 | 1001443 |
