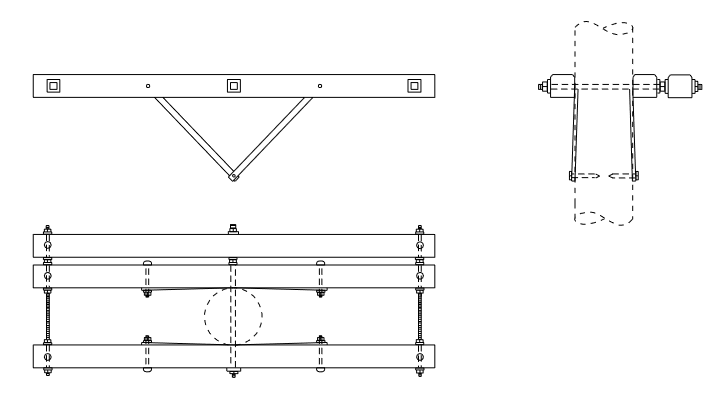

X0103 - Triple 7' 2 Steel Pin Crossarm
Revision 3
Mar 15, 2012
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0103 | Bolt, Machine 5/8" x 28" | 1 | 124280 |
| Bolt, D.A. 5/8" x 28" | 2 | 126004 | |
| Screw, Lag 1/2" x 4" | 2 | 163816 | |
| Crossarm, Wood 2-Pin 7' | 3 | 872558 | |
| Gain, Crossarm #2 | 2 | 896821 | |
| Washer, Galv Sq 2" Flat 11/16 Hole | 16 | 910267 |
