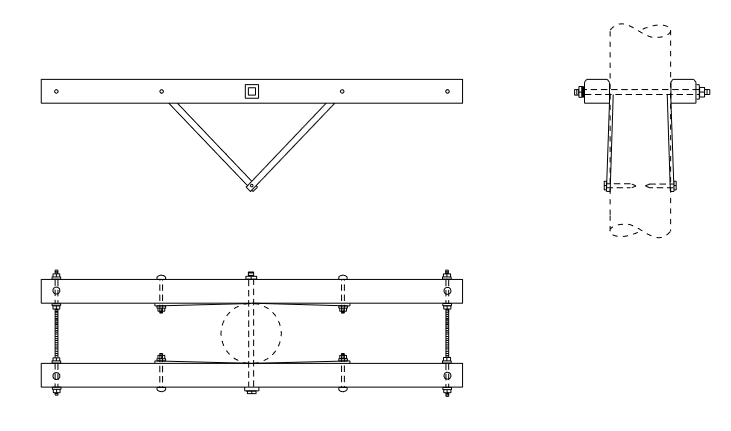

X0102 - Double 7' 2 Steel Pin Crossarm
Revision 3
May 19, 2015
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0102 | 7' 2 Steel Pin Crossarm | 2 | 872558 |
| 5/8" x 20" Double Arm Bolt | 3 | 125981 | |
| 1/2" x 4" Lag Screw | 2 | 163816 | |
| 5/8" Square Washer | 10 | 910267 | |
| 5/8" Double Spring Washer | 6 | 1001443 |
