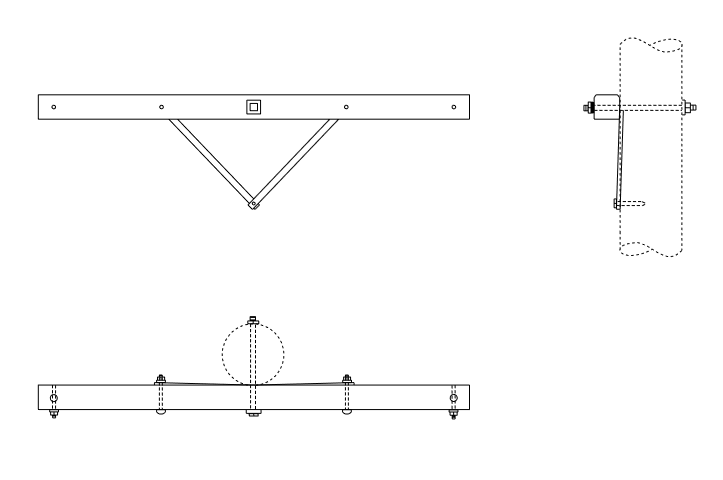

X0101 - Single 7' 2 Steel Pin Crossarm
Revision 3
May 19, 2015
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0101 | 7' 2 Steel Pin Crossarm | 1 | 872558 |
| 5/8" x 14" Machine Bolt | 1 | 124214 | |
| 1/2" x 4" Lag Screw | 1 | 163816 | |
| No. 2 Curved Washer | 1 | 910019 | |
| 5/8" Square Washer | 1 | 910267 | |
| 5/8" Double Spring Washer | 1 | 1001443 |
