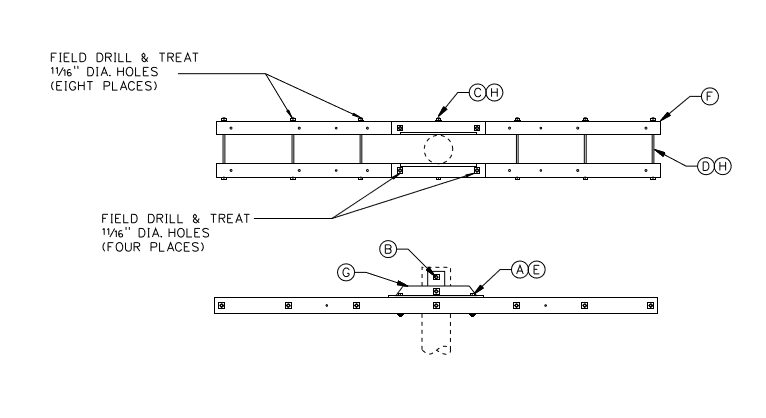

X0606 - Double 13' 6 Steel Pin Crossarm w/ 33-1/4" Support Bracket *Maintenance Only*
Revision 3
Jan 22, 2021
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0606 | A | Bolt, Machine 5/8" x 8" | 4 | 124157 |
| B | Bolt, Machine 5/8" x 18" | 2 | 124222 | |
| C | Bolt, Machine 5/8" x 28" | 1 | 124280 | |
| D | Bolt, DA 5/8" x 30" | 6 | 126012 | |
| E/H | Washer, Square 5/8" | 30 | 910267 | |
| F | Crossarm, Wood 6-Pin 13' | 2 | 872160 | |
| G | Bracket, Crossarm Support | 2 | 876633 |
Note:
- Typical application is installing 600A disconnect switches on one circuit of a 3Ø double circuit (6-conductors on-the-arm).
