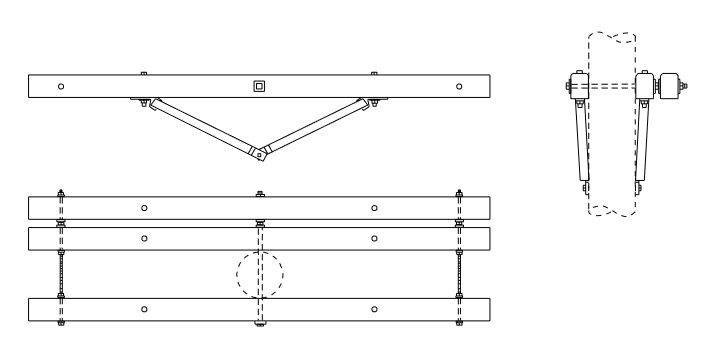

X0604 - Triple 13' 6 Steel Pin Crossarm *Maintenance Only*
Revision 2
Jan 22, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0604 | Bolt, Machine 1/2" x 7" | 4 | 123828 |
| Bolt, D.A. 5/8" x 30" | 3 | 126012 | |
| Screw, Lag 5/8" x 5" | 2 | 163999 | |
| Washer, Round 1/2" | 4 | 196461 | |
| Crossarm, Wood 6-Pin 13' | 3 | 872160 | |
| Brace, Crossarm Wood 36" | 4 | 876203 | |
| Washer, Square 5/8" | 16 | 910267 | |
| Washer, 5/8" Spring Double Coil Lock | 5 | 1001443 | |
| Washer, 1/2" Spring Double Coil Lock | 4 | 1001444 |
