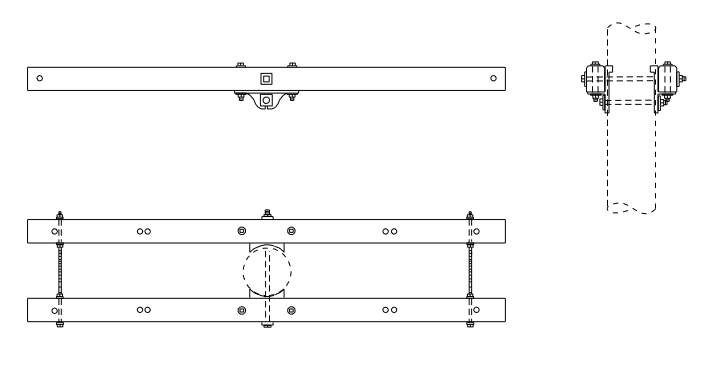

X0603 - Double 13' 6 Steel Pin Crossarm, Braceless Gain *Maintenance Only*
Revision 2
Jan 22, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0603 | Bolt, Machine 1/2" x 7" | 4 | 123828 |
| Bolt, DA 5/8" x 26" | 2 | 125999 | |
| Washer, Round 1/2" | 8 | 196461 | |
| Crossarm, Wood 6-Pin 13' | 2 | 872160 | |
| Braceless Gain | 2 | 896863 | |
| Washer, Square 5/8" | 10 | 910267 | |
| Washer, Spring, 5/8" Double Coil Lock | 6 | 1001443 | |
| Washer, Spring, 1/2" Double Coil Lock | 4 | 1001444 |
