Revision 2
Jan 22, 2021

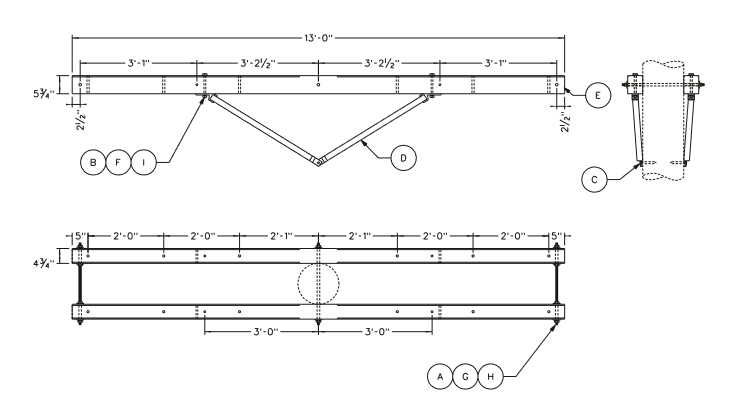

X0602 - Double 13' 6 Steel Pin Crossarm *Maintenance Only*
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0602 | A | Bolt, D.A. 5/8” x 26” | 3 | 125999 |
| B | Bolt, Machine ½” x 7” | 4 | 123828 | |
| C | Screw, Lag 5/8” x 5” | 2 | 163999 | |
| D | Brace, Crossarm Wood 36” | 4 | 876203 | |
| E | Crossarm, 13’ | 2 | 872160 | |
| F | Washer, Round ½” | 4 | 196461 | |
| G | Washer, Square 5/8” | 10 | 910267 | |
| H | Washer, Galv Double Coil Spring Lock 5/8” | 6 | 1001443 | |
| I | Washer, Galv Double Coil Spring Lock ½” | 4 | 1001444 |
