Revision 2
Jan 22, 2021

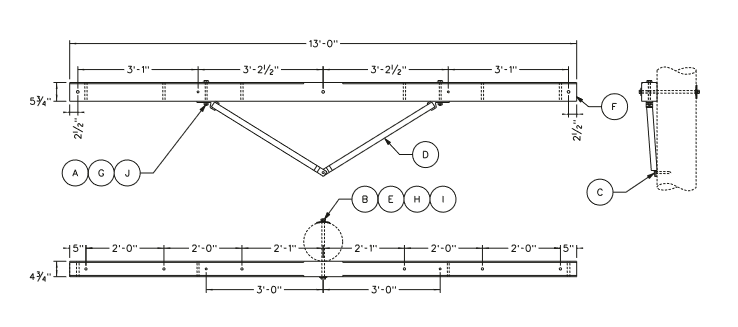

X0601 - 13' 6 Steel Pin Crossarm *Maintenance Only*
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0601 | A | Bolt, Machine ½” x 7” | 2 | 123828 |
| B | Bolt, Machine 5/8” x 18” | 1 | 124222 | |
| C | Screw, Lag 5/8” x 5” | 1 | 163999 | |
| D | Brace, Crossarm Wood 36” | 2 | 876203 | |
| E | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |
| F | Crossarm, 13’ | 1 | 872160 | |
| G | Washer, Round ½” | 2 | 196461 | |
| H | Washer, Square 5/8” | 1 | 910267 | |
| I | Washer, Galv Double Coil Spring Lock 5/8” | 1 | 1001443 | |
| J | Washer, Galv Double Coil Spring Lock ½” | 2 | 1001444 |
