Revision 1
Feb 9, 2015

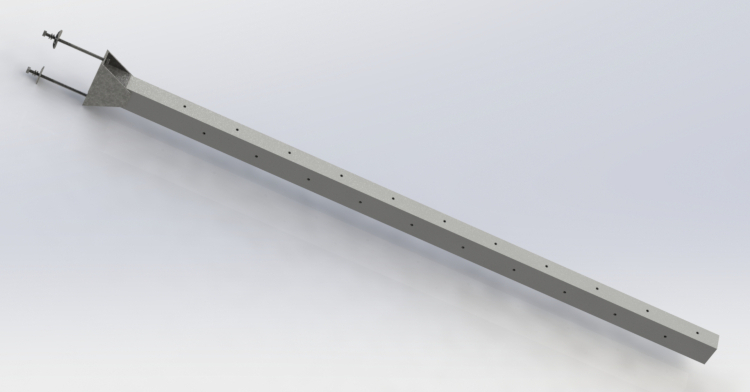

X0555 - Crossarm, 12' Fiberglass Alley Arm

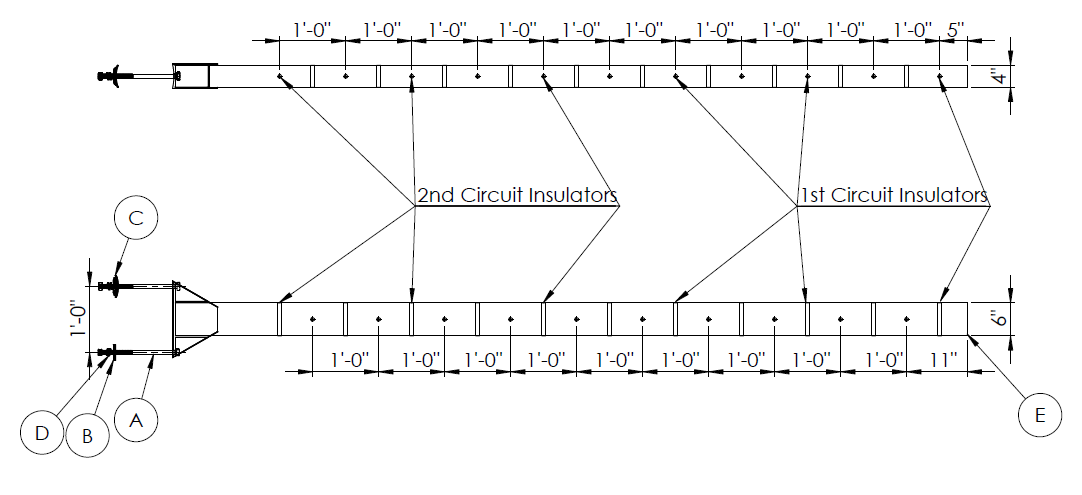

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0555 | A | Bolt, Machine 3/4” x 14" | 2 | 124595 |
| B | Washer, Galv Sq 3” Curved 13/16” Hole | 1 | 910019 | |
| C | Washer, Cast Sq 4" Curved 15/16" Hole | 1 | 910035 | |
| D | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | |
| E | Crossarm, Fiberglass, 12' Alley Arm, Self-Supporting | 1 | 1003557 |
| Single Circuit (lbs/ϕ) | Double Circuit (lbs/ϕ) | |
|---|---|---|
| Longitudinal | 183 | 137 |
| Vertical | 296 | 215 |
Notes:
- This crossarm can be used in lieu of double wood 13' alley arms (Compatible Unit X0503A) where a brace-less alley arm is preferred.
- Important! — do not exceed the maximum vertical and longitudinal working loads shown above.
- When used in a single circuit configuration, the 1st Circuit location is used.
