X0302-D - 13' Tangent Fiberglass Arms
Revision 1
Mar 18, 2026

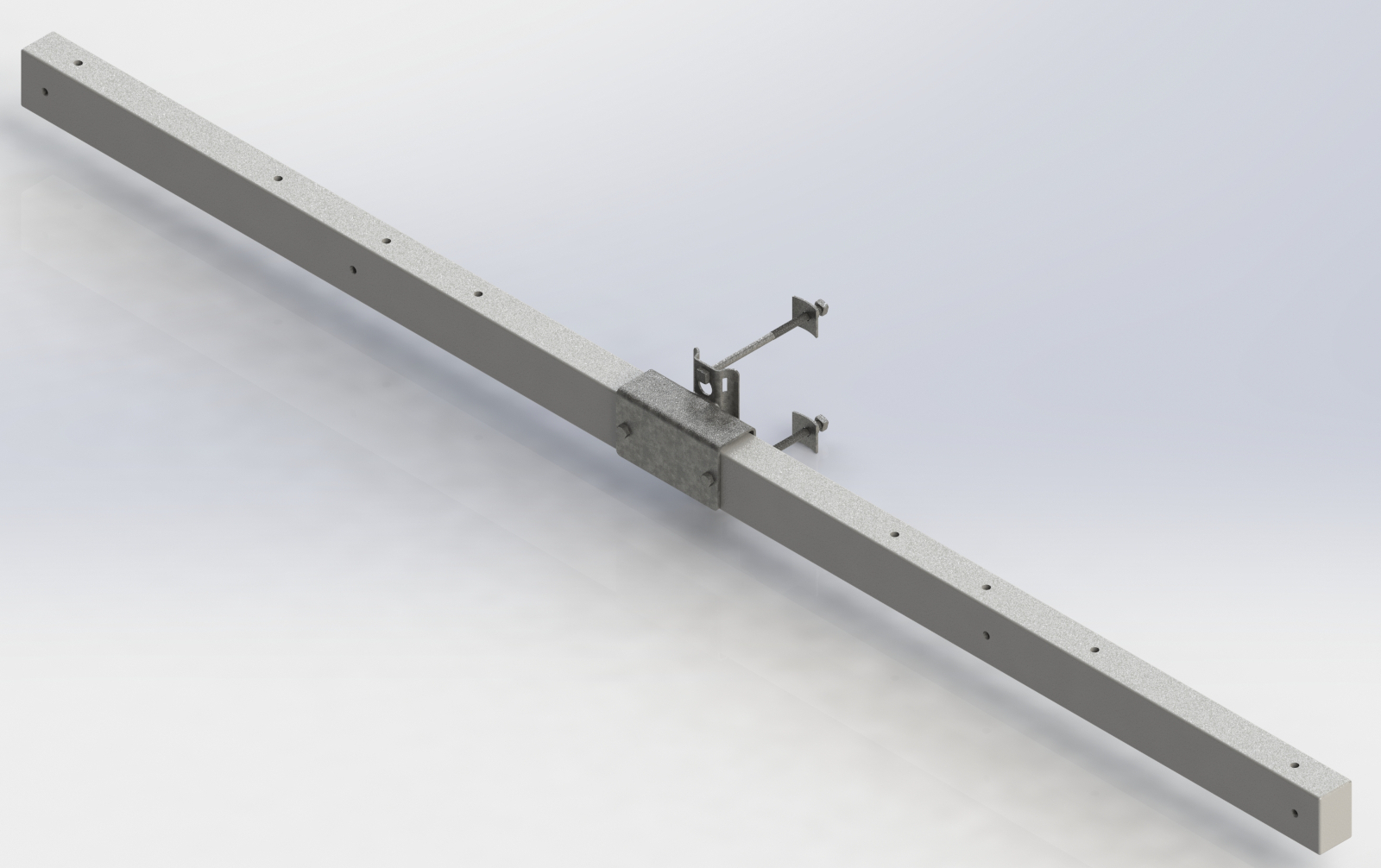

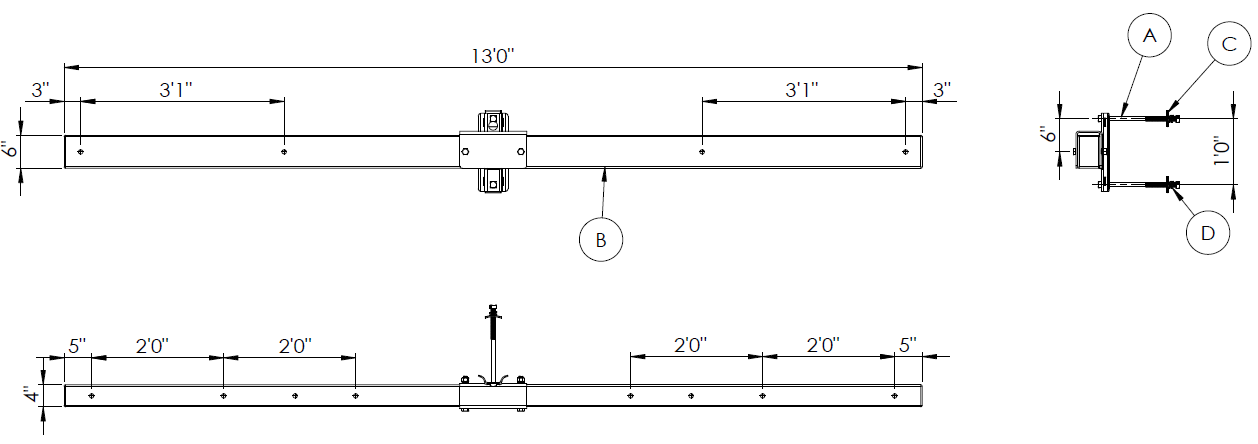

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0302 | A | Bolt, Machine 3/4” x 14” | 2 | 124595 |
| B | Crossarm, 13' Tangent Fiberglass | 1 | 872665 | |
| C | Washer, Galv Sq 3” Curved 13/16” Hole | 2 | 910019 | |
| D | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 |

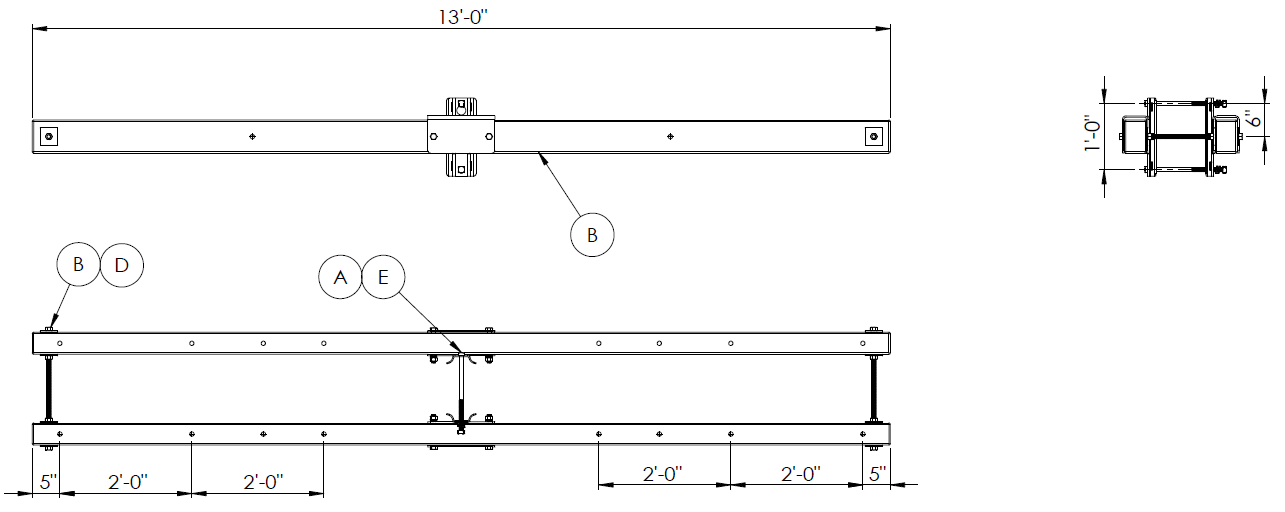

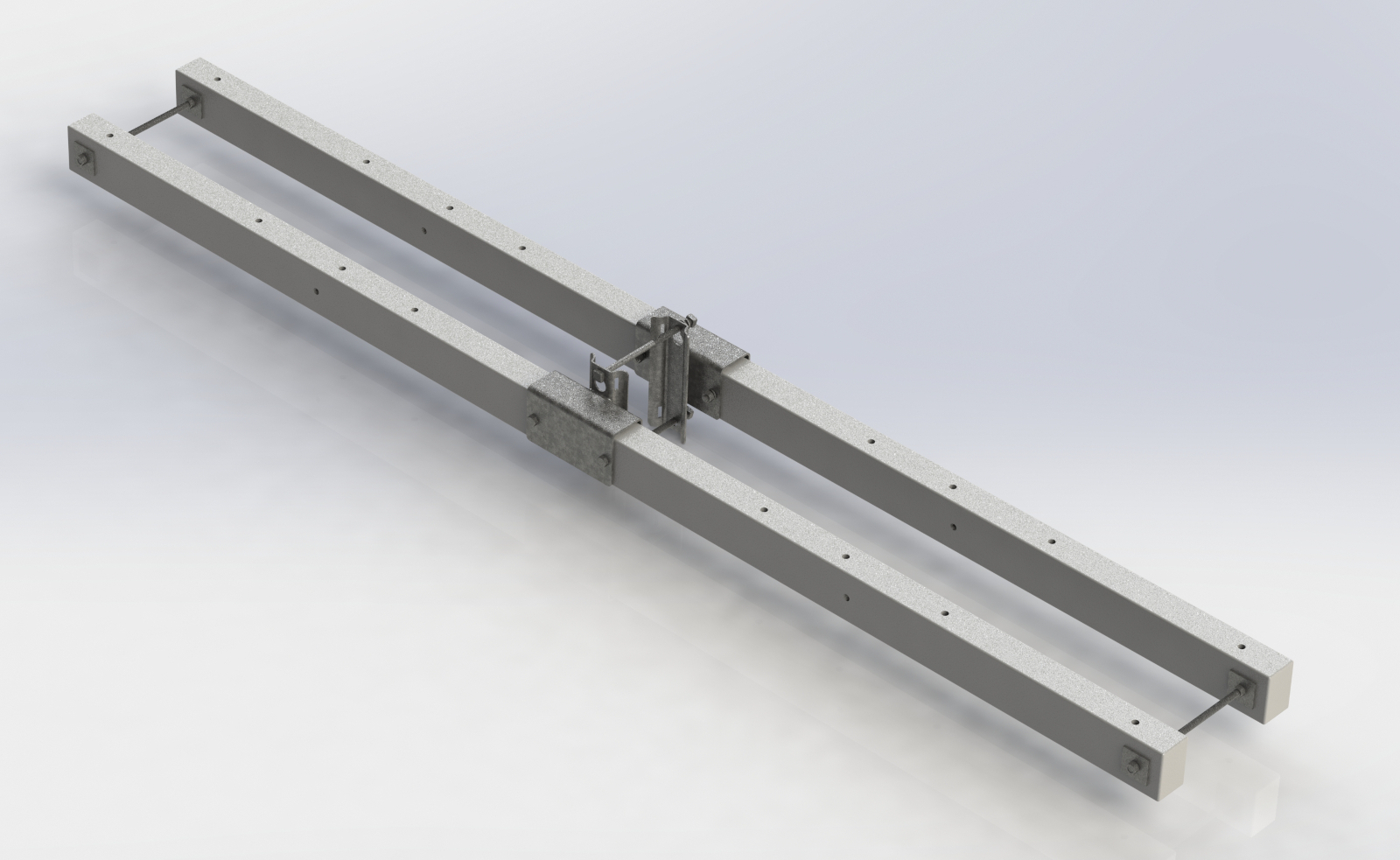

| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0302D | A | Bolt, Machine 3/4” x 14” | 2 | 124595 |
| B | Crossarm, 13' Tangent Fiberglass | 2 | 872665 | |
| C | Washer, Galv Sq 3" Flat 13/16" Hole | 8 | 910275 | |
| D | Washer, Galv Double Coil Spring Lock 3/4” | 2 | 1001445 | |
| E | Bolt, DA 3/4" x 22" | 2 | 101585 |
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0302A | A | Bolt, Machine 3/4" x 14" | 2 | 124595 |
| B | Bolt, DA 3/4" x 18" | 1 | 124610 | |
| C | Bolt, DA 5/8" x 20" | 1 | 124248 | |
| D | Washer, Galv Sq 2" Flat 11/16" Hole | 4 | 910267 | |
| E | Washer, Galv Double Coil Spring Lock 3/4" | 4 | 1001445 | |
| F | Crossarm, 13' Fiberglass Alley Standard Mount | 2 | 5006411 | |
| G | Brace, Fiberglass Alley Arm | 2 | 5006412 |
