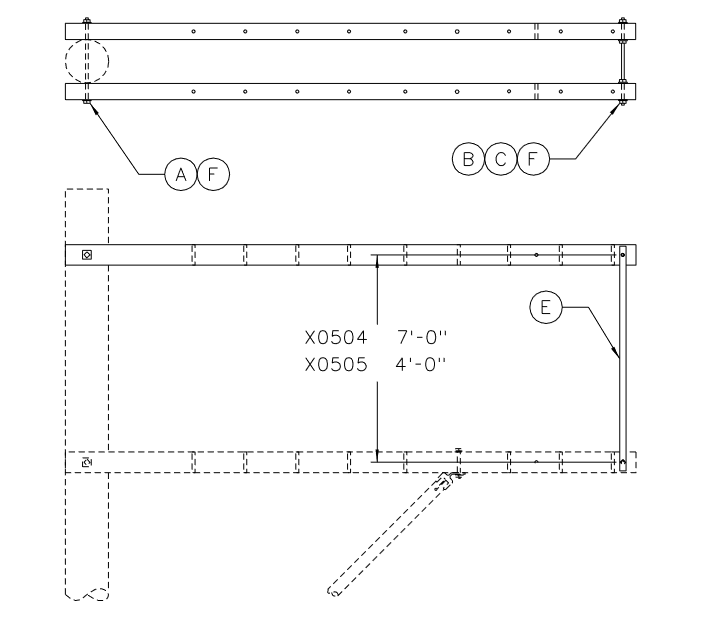

X0504-5 - Second Double 11' 8 Steel Pin Alley Arm *Maintenance Only*
Revision 4
Jan 22, 2021
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| X0504 | A | Bolt, Machine 5/8" x 20" | 1 | 124248 |
| B | Bolt, DA 5/8" x 20" | 1 | 125965 | |
| C | Washer, Galv Rd 1-3/4" Flat 11/16" Hole | 4 | 196479 | |
| D | Crossarm, Wood 8-Pin 11' | 2 | 873027 | |
| E | Brace, Galv Alley Arm 7' | 2 | 876568 | |
| F | Washer, Galv Sq 2" Flat 11/16" Hole | 6 | 910267 | |
| X0505 | A | Bolt, Machine 5/8" x 20" | 1 | 124248 |
| B | Bolt, DA 5/8" x 20" | 1 | 125965 | |
| C | Washer, Galv Rd 1-3/4" Flat 11/16" Hole | 4 | 196479 | |
| D | Crossarm, Wood 8-Pin 11' | 2 | 873027 | |
| E | Brace, Galv Alley Arm 4' | 2 | 876617 | |
| F | Washer, Galv Sq 2" Flat 11/16" Hole | 6 | 910267 |
