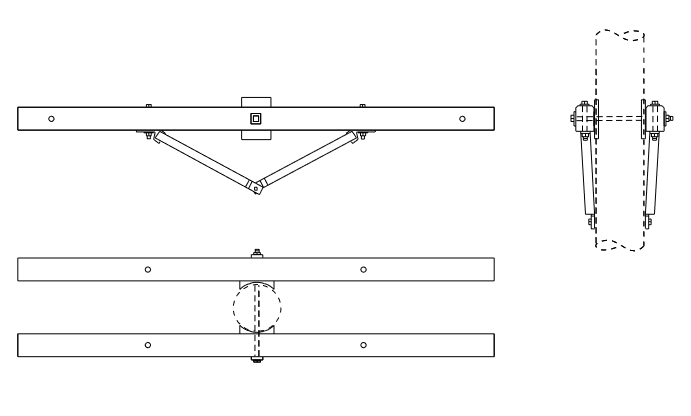

X0444 - Double 10' 4 Steel Pin Crossarm *Maintenance Only*
Revision 2
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0444 | Machine Bolt, 5/8" X 14" | 1 | 124206 |
| Machine Bolt, 5/8" X 22" | 1 | 124256 | |
| Machine Bolt, 1/2" X 7" | 4 | 123828 | |
| Bolt, D.A. 5/8" X 22" | 2 | 125973 | |
| 10' 4 Steel Pin Crossarm | 2 | 872566 | |
| Wood Crossarm Brace | 4 | 876154 | |
| Gain Plate | 2 | 896871 | |
| 5/8" Square Washer | 10 | 910267 | |
| 1/2" Cut Round Washer | 4 | 196461 |
