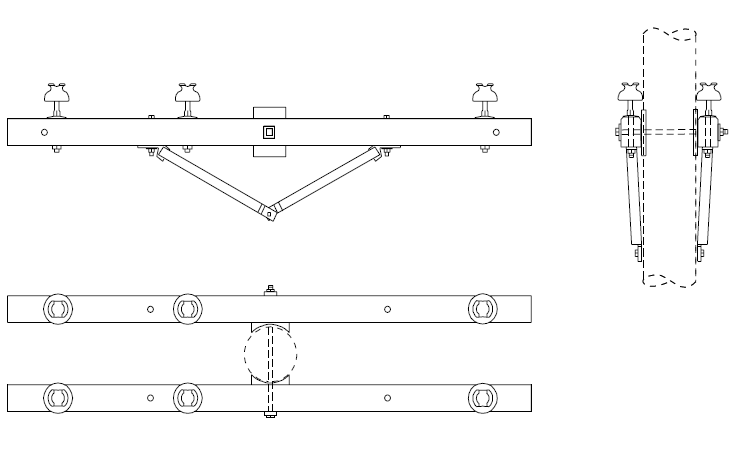

X0442 - Double 10' 4 Steel Pin Crossarm w/ 3 Insulator for Concrete Poles *Maintenance Only*
Revision 2
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0442 | Machine Bolt, 5/8" X 14" | 1 | 124206 |
| Machine Bolt, 5/8" X 22" | 1 | 124256 | |
| Machine Bolt, 1/2" X 7" | 4 | 123828 | |
| Bolt, D.A. 5/8" X 22" | 2 | 125973 | |
| 5/8" Square Washer | 10 | 910267 | |
| Gain Plate | 2 | 896871 | |
| Wood Crossarm Brace | 4 | 876154 | |
| Steel Pin | 6 | 895039 | |
| 1177 Insulator | 6 | 935033 | |
| 1/2" Cut Round Washer | 4 | 196461 | |
| 4 Steel Pin Crossarm | 2 | 872566 |
