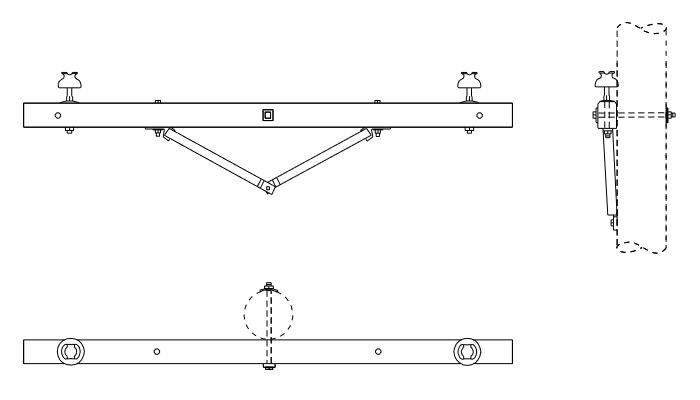

X0421 - Single 10' 4 Steel Pin Crossarm w/ Insulators *Maintenance Only*
Revision 3
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0421 | Bolt, Machine 1/2" x 7" | 2 | 123828 |
| Bolt, Machine 5/8" x 14" | 1 | 124206 | |
| Screw, Lag 5/8" x 5" | 1 | 163999 | |
| Washer, Round 1/2" | 1 | 196461 | |
| Crossarm, Wood 4-Pin 10' | 1 | 872566 | |
| Brace, Crossarm Wood 30" | 2 | 876154 | |
| Pin, Insulator Steel 5/8" x 6-1/2" | 2 | 895039 | |
| Washer, Curved #2 | 1 | 910019 | |
| Washer, Square 5/8" | 1 | 910267 | |
| Insulator, Pin #1177 | 2 | 935033 |
