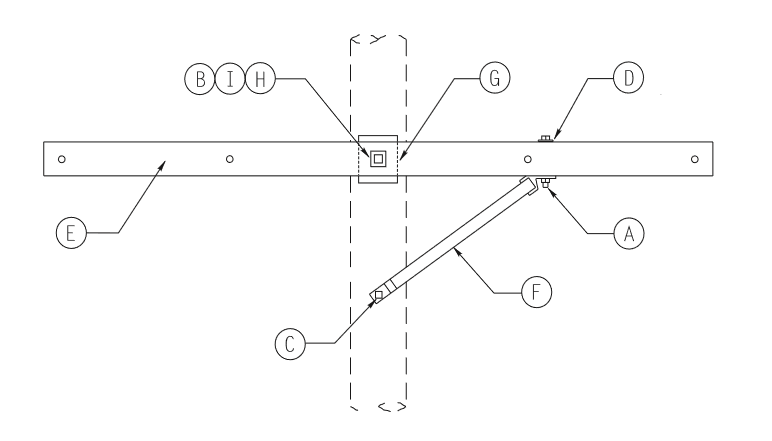

X0417 - Single 10' 4 Steel Pin Crossarm w/ Single Wood Brace *Maintenance Only*
Revision 5
Jan 21, 2021
| Compatible Unit | Description | Qty | MID | |
|---|---|---|---|---|
| X0417 | A | Bolt, Machine 1/2" x 7" | 1 | 123828 |
| B | Bolt, Machine 5/8" x 16" | 1 | 124214 | |
| C | Screw, Lag 5/8" x 5" | 1 | 163999 | |
| D | Washer, Galv Rd 1-3/8" Flat 9/16" Hole | 1 | 196461 | |
| E | Crossarm, Wood 4-Pin 10' | 1 | 872566 | |
| F | Brace, Crossarm Wood 30" | 1 | 876154 | |
| G | Gain, Crossarm Spiked #3 | 1 | 896839 | |
| H | Washer, Galv Sq 3" Curved 13/16" Hole | 1 | 910019 | |
| I | Washer, Galv Sq 2" Flat 11/16" Hole | 1 | 910267 | |
| J | Washer, Galv Double Coil Spring Lock 5/8" | 1 | 1001443 | |
| K | Washer, Galv Double Coil Spring Lock 1/2" | 1 | 1001444 |
