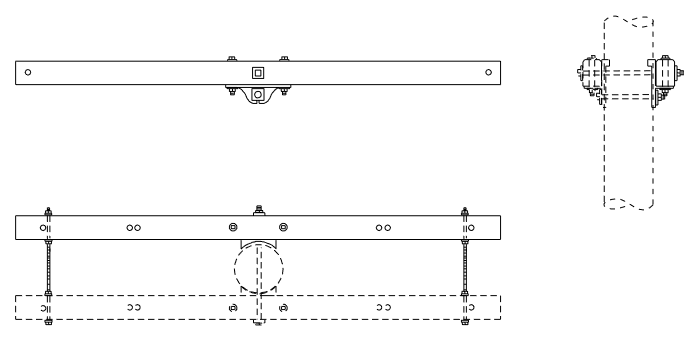

X0415 - Doubling Existing 10' 4 Steel Pin Crossarm w/ Braceless Gain *Maintenance Only*
Revision 4
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0415 | Bolt, Machine 1/2" x 7" | 2 | 123828 |
| Bolt, Machine 5/8" x 16" | 1 | 124214 | |
| Bolt, DA 5/8" x 20" | 3 | 125981 | |
| Crossarm, Wood 4-Pin 10' | 1 | 872566 | |
| Braceless Gain | 1 | 896863 | |
| Washer, Round 1/2" | 4 | 196461 | |
| Washer, Square 5/8" | 10 | 910267 | |
| Washer, Galv Double Coil Spring Lock, 5/8" | 6 | 1001443 |
