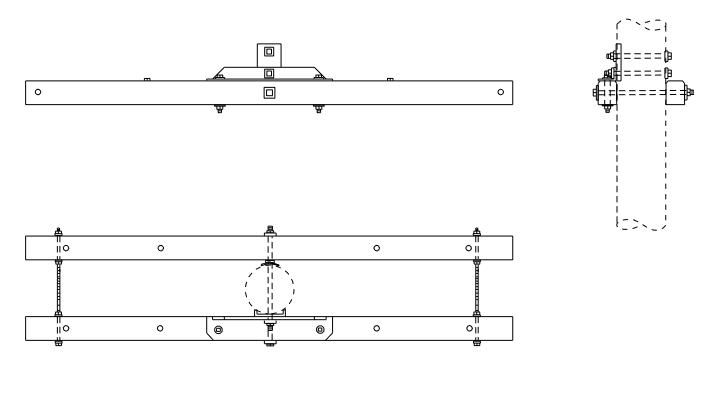

X0414 - Double 10' 4 Steel Pin Crossarm w/ 33" Support Bracket *Maintenance Only*
Revision 4
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0414 | Bolt, Machine 5/8" x 8" | 2 | 124157 |
| Bolt, Machine 5/8" x 16" | 2 | 124214 | |
| Bolt, DA 5/8" x 20" | 3 | 125981 | |
| Crossarm, Wood 4-Pin 10' | 2 | 872566 | |
| Bracket, Crossarm Support 33-1/4" | 1 | 876633 | |
| Washer, Galv Sq 3" Curved 13/16" Hole | 2 | 910019 | |
| Washer, Galv Sq 2" Flat 11/16" Hole | 14 | 910267 | |
| Washer, Galv Double Coil Spring Lock, 5/8" | 13 | 1001443 |
