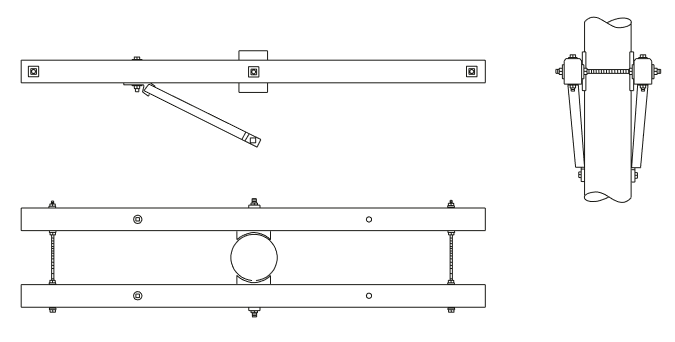

X0412 - Double 10' 4 Steel Pin Crossarm Braced on 1-Side for Underarm Disconnect Switch Mounting *Maintenance Only*
Revision 4
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0412 | Bolt, Machine 1/2" x 7" | 2 | 123828 |
| Bolt, DA 5/8" x 24" | 3 | 125981 | |
| Screw, Lag Galv 5/8" x 5" | 2 | 163999 | |
| Washer, Galv Rd 1-3/8" OD Flat 9/16" Hole | 2 | 196461 | |
| Crossarm, Wood 4-Pin 10' | 2 | 872566 | |
| Brace, Crossarm Wood 30" | 2 | 876154 | |
| Gain, Crossarm Spiked #3 | 2 | 896839 | |
| Washer, Galv Sq 2” Flat 11/16” Hole | 10 | 910267 | |
| Washer, Galv Double Coil Spring Lock 5/8” | 6 | 1001443 | |
| Washer, Galv Double Coil Spring Lock 1/2” | 2 | 1001444 |
