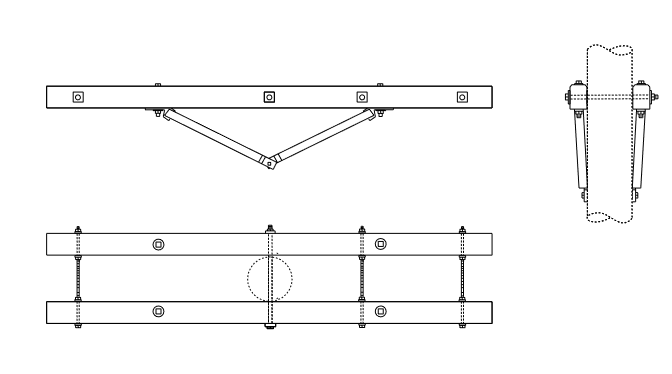

X0407 - Double 10' 4 Steel Pin Crossarm - Transmission Underbuild *Maintenance Only*
Revision 7
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0407 | Bolt, Machine 1/2" x 7" | 4 | 123828 |
| Bolt, DA 5/8" x 30" | 4 | 126012 | |
| Screw, Lag 5/8" x 5" | 2 | 163999 | |
| Washer, Galv Rd 1-3/8" OD Flat 9/16" Hole | 4 | 196461 | |
| Crossarm, Wood 4-Pin 10' | 2 | 872566 | |
| Brace, Crossarm Wood 30" | 4 | 876154 | |
| Washer, Galv Sq 2" Flat 11/16" Hole | 14 | 910267 | |
| Washer, Galv Double Coil Spring Lock 5/8" | 8 | 1001443 | |
| Washer, Galv Double Coil Spring Lock 1/2" | 4 | 1001444 |
