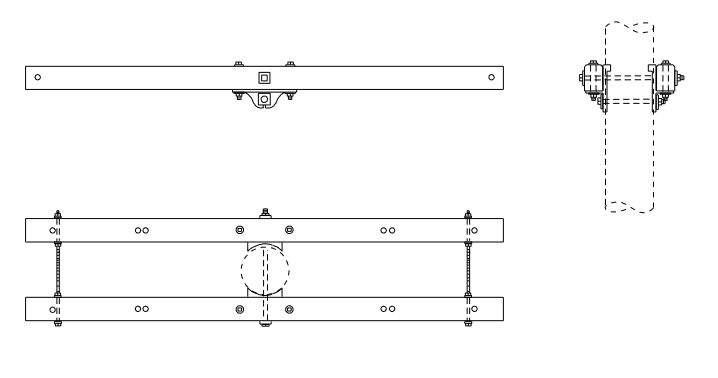

X0406 - Double 10' 4 Steel Pin Crossarm w/ Braceless Gain *Maintenance Only*
Revision 4
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0406 | Bolt, Machine 1/2" x 7" | 4 | 123828 |
| Bolt, Machine 5/8" x 14" | 1 | 124206 | |
| Bolt, Machine 5/8" x 20" | 1 | 124248 | |
| Bolt, DA 5/8" x 20" | 2 | 125965 | |
| Washer, Galv Rd 1-3/8" OD Flat 9/16" Hole | 8 | 196461 | |
| Crossarm, Wood 4-Pin 10' | 2 | 872566 | |
| Braceless Gain | 2 | 896863 | |
| Washer, Square 5/8" | 10 | 910267 |
