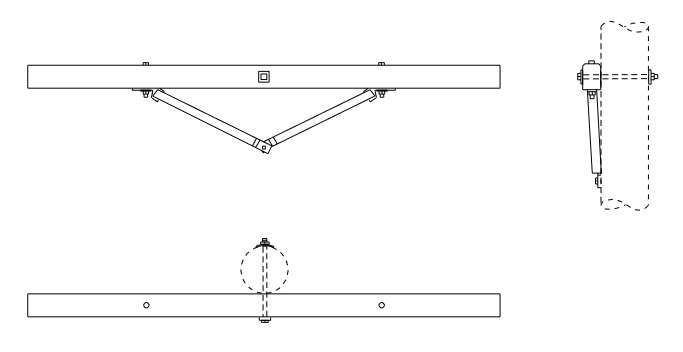

X0401 - Single 10' 4 Steel Pin Crossarm *Maintenance Only*
Revision 5
Jan 21, 2021
| Compatible Unit | Description | Qty | MID |
|---|---|---|---|
| X0401 | Bolt, Machine 1/2" x 7" | 2 | 123828 |
| Bolt, Machine 5/8" x 16" | 1 | 124214 | |
| Screw, Lag 5/8" x 5" | 1 | 163999 | |
| Washer, Round 1/2" | 2 | 196461 | |
| Crossarm, Wood 4-Pin 10' | 1 | 872566 | |
| Brace, Crossarm Wood 36-1/2" | 2 | 876154 | |
| Washer, Curved #2 | 1 | 910019 | |
| Washer, Square 5/8" | 1 | 910267 |
