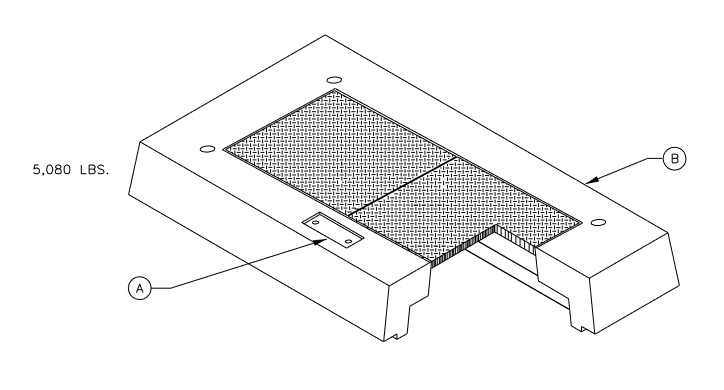

V0902 - Concrete Vault Cover w/ 2 Grate/Vents, 5' X 9' X 16"
Revision 3
Mar 14, 2012
| C.U. | Item | Description | Qty | MID |
|---|---|---|---|---|
| V0901 | A | Tag, Vault | 1 | 385303 |
| B | Cover, Vault w/(2) 36" Sq. Grate/Vents 5'-0"W x 9'-0"L x 16"D | 1 | 790594 |
Note:
- The grate/vents weigh 165 lbs each and have a net ventilation are of 750 sq. inches each.
