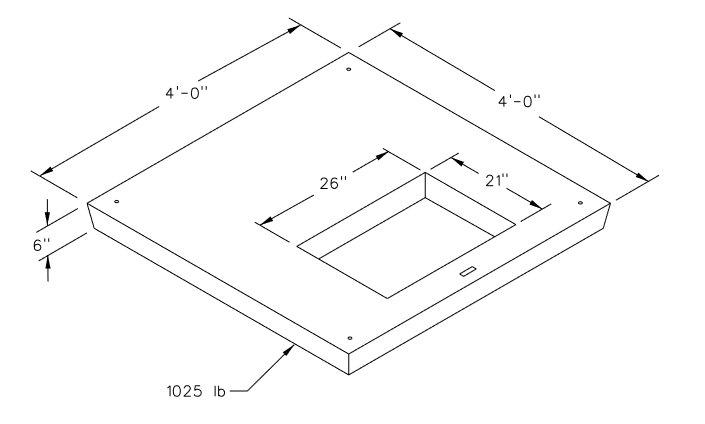

V0307 - Vault Cover, 4'-0" x 4'-0" x 6" w/ 26"W x 21"D Access Opening
Revision 1
Dec 29, 2016
| C.U. | Description | Qty | MID |
|---|---|---|---|
| V0307 | Cover, Vault Concrete 4'W x 4'L x 6"H w/ 26"W x 21"L Opening | 1 | 1002946 |
Note:
- The primary use for this vault cover is for converting a 1Ø submersible transformer installed in a 4'W x 4'L x 5'6"H vault with a grate vent cover to a 1Ø padmounted transformer set on top of the vault.
