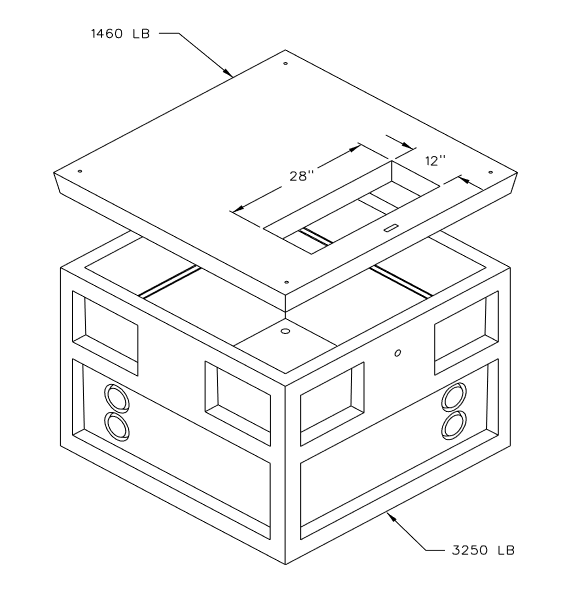

V0302 - Vault, 4'-8" X 4'-8" X 4' & Cover w/ 12" X 28" Hole
Revision 3
Feb 25, 2009
| C.U. | Description | Qty | MID |
|---|---|---|---|
| V0302 | Vault, Concrete 4'8"W x 4'8"L x 3'6"H & Cover, Vault 4'8"W x 4'8"L x 6"H w/ 12"W x 28"L Access Hole
(Cover Only - MID 781402) |
1 | 766305 |
Note:
- Refer to ESR, Section 4 - 1Ø Padmount Transformer Service Selection Guide, for appropriate applications.
