V0508 - Trayer Switch Cabinet Vault
Revision 0
Jan 27, 2021

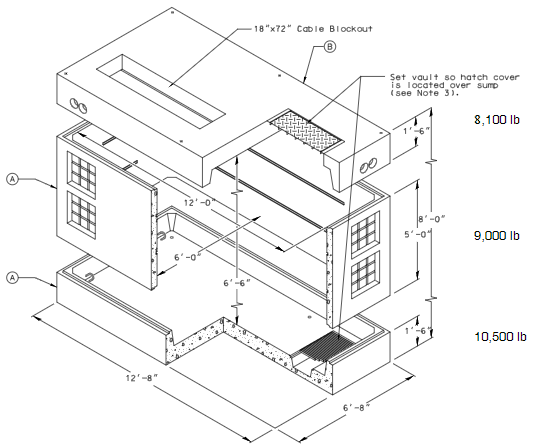

| C.U. | Item | Section | Description | Qty | MID |
|---|---|---|---|---|---|
| V0508 | A |
Bottom Middle |
Vault, 2-Piece Concrete 6'8"W x 12'8"L x 1'6"H 6'8"W x 12'8"L x 5'H |
1 | 1003601 |
| B | Cover | 6'8"W x 12'8"L x 1'6"D w/ 18" x 72" Cable Blockout & 36" Sq Diamond Plate Hatch Cover |
1 | 5001493 |
Notes:
- When there is a delay between setting the vault and installing the pad-mounted switchgear, use solid cover MID 790023 (5'4"W x 6'L x 4"H) to cover the cable blockout in the vault cover.
- For the vault cover only, use MID 5001493.
- Orient the vault base section so the pump sump is located below the hatch cover.
- Section weights are approximate.
