V0503A - S&C Vista Switch Cabinet Vault - Blockout Facing Hatch

Revision 0
Aug 28, 2015

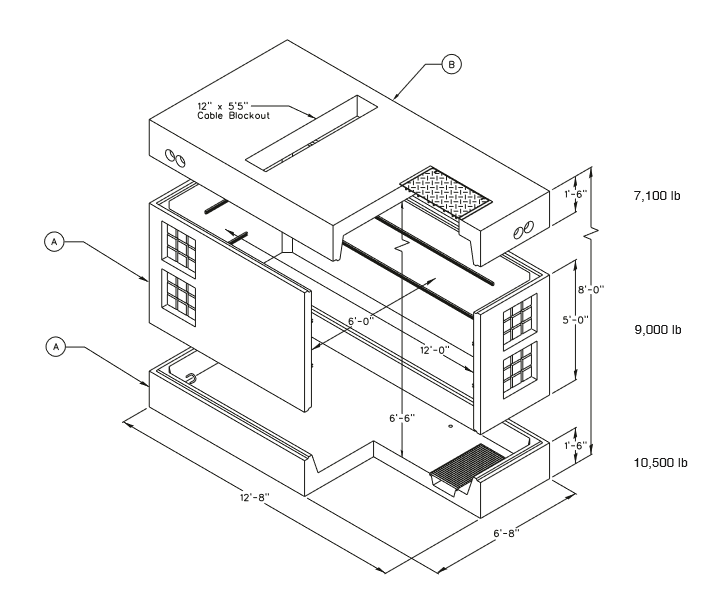

C.U. Item Section Description Qty MID
V0503A A
Bottom
Middle		 Vault, 2-Piece Concrete
6'8"W x 12'8"L x 1'6"H
6'8"W x 12'8"L x 5'H		 1 1003601
  B Cover 6'-8"W x 12'-8"L x 1'-6"D w/12" x 65" Cable
Blockout Facing 36" Sq Diamond Plate Hatch Cover		 1 1003794

Notes:

  1. When there is a delay between setting the vault and installing the pad-mounted switchgear, use solid cover MID 790023 (5'-4" x 6'-0" x 4") to cover the cable blockout in the vault cover.
  2. For the vault cover only, see MID 1003794.
  3. Orient the vault base section so the pump sump is located below the hatch cover.
  4. Section weights are approximate.
