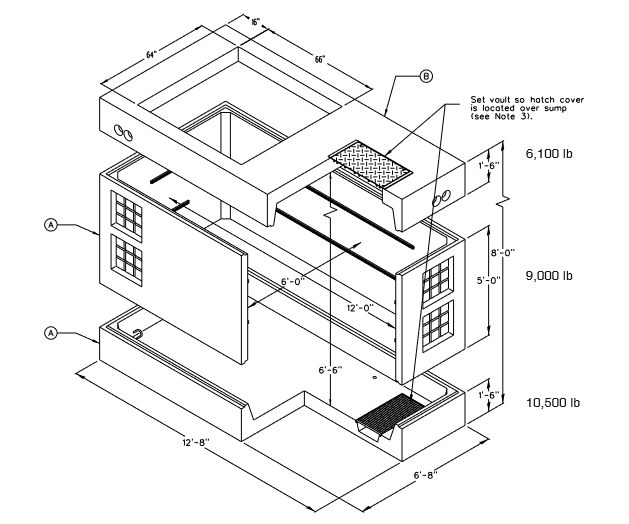

V0501 - Dead-Front Switch Cabinet Vault, 6'-8" x 12'-8" x 8'

Revision 5
Jan 3, 2016

C.U. Item Section Description Qty MID
V0501 A
Bottom
Middle		 Vault, 2-Piece Concrete
6'8"W x 12'8"L x 1'6"H
6'8"W x 12'8"L x 5'0"H		 1 1003601
  B Cover 6'8"W x 12'8"L x 1'6"H w/ 3'W x 3'L Diamond Plate & 64"W x 66"L Opening 1 1002508

Notes:

  1. When there is a delay between setting the vault and installing the pad-mounted switchgear, use solid cover slab MID 5000051 (6'W x 6'L x 6"H) to cover the cable blockout in the vault cover. The cover slab weighs approximately 3618 lb.
  2. For the vault cover only, see MID 1002508.
  3. Orient the vault base section so the pump sump is located below the hatch cover.
  4. Section weights are approximate.
