V0220-1 - Secondary Termination Cabinet Vaults

Revision 4
Dec 28, 2016

C.U.DescriptionQtyMID
V0220Vault, Conc 4'8"W x 7'L x 4'H &
Cover, Vault 4'8"W x 7'L x 6"H w/ 3'W x 3'L DP & 30"W x 24"L Opening
(Use w/Secondary Cabinet T1550, 20-positions per phase)		11000746

C.U.DescriptionQtyMID

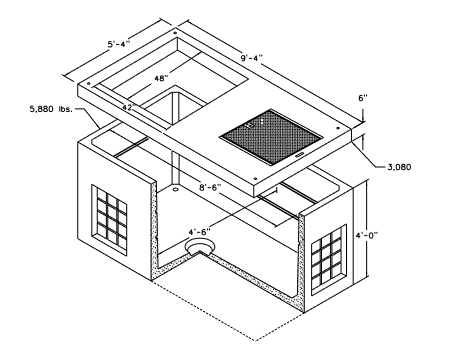

V0221Vault, Conc, 5'4"W x 9'4"L x 4'H &
Cover, Vault 5'4"W x 9'4"L x 6"H w/ 3'W x 3"L DP & 48"W x 42"L Opening
(Use w/Secondary Cabinet T1551, 30-positions per phase)		11000747
