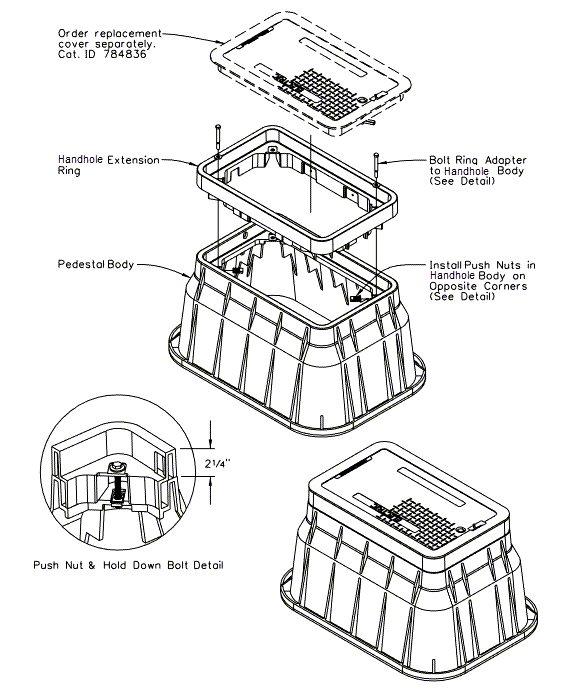

V0110 - Secondary Handhole Extension Ring and Lid

Revision 4
Aug 22, 2013

C.U. Description Qty MID
V0110 Handhole Extension Ring 13"W x 24"L x 2"H 1 1001826

Notes:

  1. Extension ring kits are for repair of 13"W x 24"L x 15"H handholes (V0101 - MID 776015) with damaged hold-down bolt assemblies. Kits may also be used to raise cover height of installed handholes.
  2. Extra push nuts are available under MID 1000537.
  3. Replacement covers are available if needed under MID 784836.
