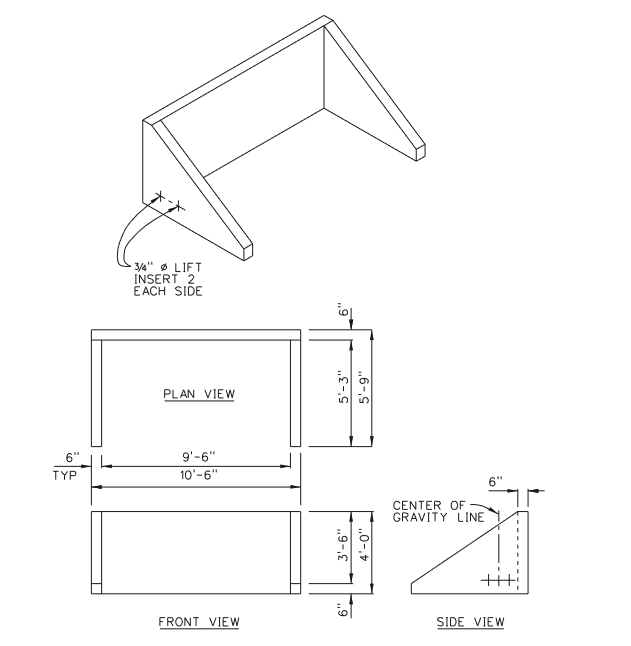

V0710 - Precast Reinforced Concrete Sloping Bulkhead 5'-2" x 9'-2" ID (6" x 48" Rise)

Revision 1
Jan 26, 2010

C.U. Description Qty MID
V0710 Bulkhead, Concrete Sloping 5'-3" x 9'-6" I.D. (6" x 48" Rise) 1 1002296

Notes:

  1. Bulkheads are used to block earth from an eroding slope from sliding down onto equipment or the cover of a vault set into or at the foot of the slope.
  2. Bulkhead V0710 is for use in conjunction with a vault having a 5'-0" x 9'-0" footprint, e.g., C.U. V0208.
