V0701-7 - Bulkheads
Revision 3
Mar 14, 2012

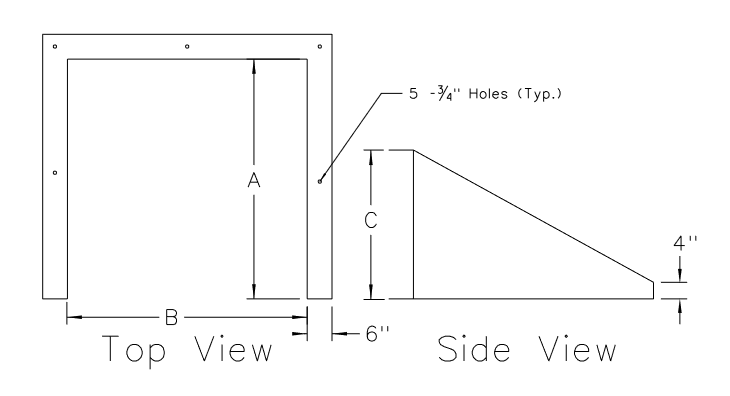

| Dimensions (inches) | |||||
|---|---|---|---|---|---|
| C.U. | A | B | C | Qty | MID |
| V0701 | 58 | 58 | 18 | 1 | 780743 |
| V0702 | 58 | 58 | 24 | 1 | 780701 |
| V0703 | 58 | 58 | 36 | 1 | 780793 |
| V0705 | 48 | 46 | 16 | 1 | 1001391 |
| V0707 | 48 | 46 | 32 | 1 | 1001434 |
Note:
- Compatible Units V0701-V0703 are typically used as hillside barriers for vaults up to 4'-8" x 4'-8". CU's V0705 and V0707 are used as hillside barriers for 1Ø padmounted transformers and J-box cabinets installed on open bottom mini-vaults.
