V0601-7 - Vault Risers
Revision 7
Apr 15, 2019
| C.U. | Fig | Description | Approx. Wt. | Qty | MID |
|---|---|---|---|---|---|

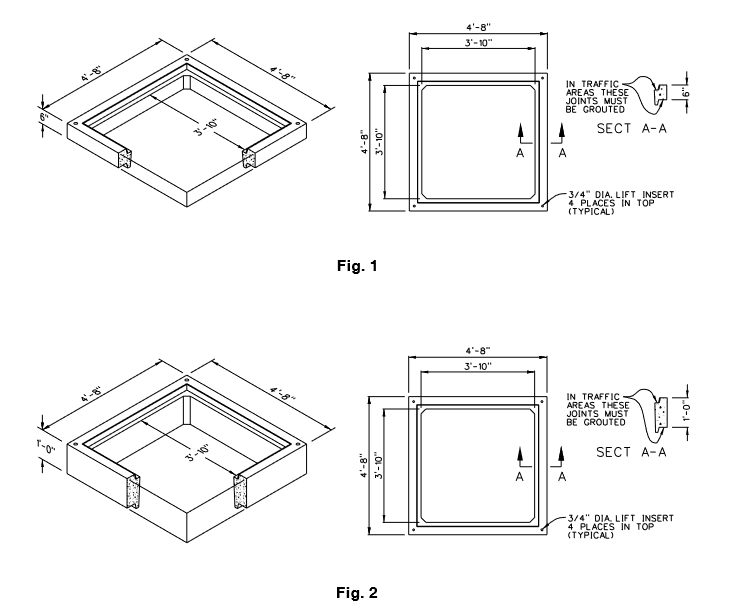

| V0601 | 1 | 4'8"W x 4'8"L x 6"H Concrete Vault Riser | 460 lbs | 1 | 780727 |
| V0602 | 2 | 4'8"W x 4'8"L x 12"H Concrete Vault Riser | 920 lbs | 1 | 780785 |
| C.U. | Fig | Description | Approx. Wt. | Qty | MID |
|---|---|---|---|---|---|

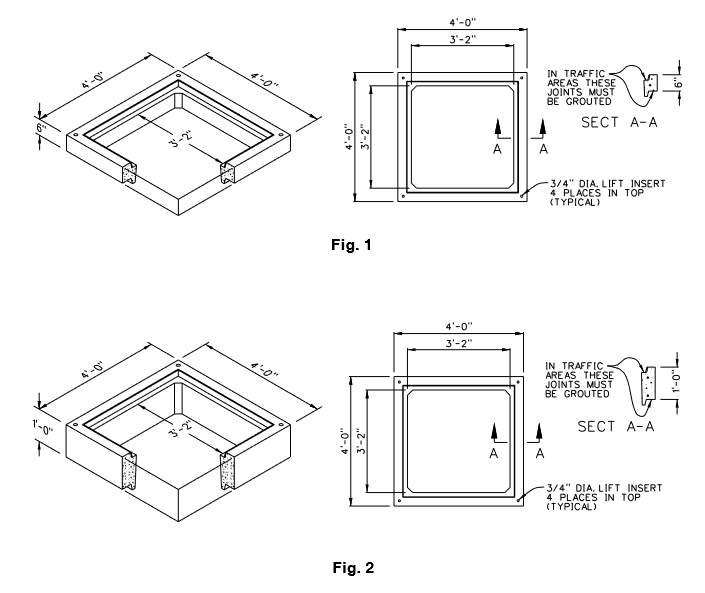

| V0603 | 1 | 4'W x 4'L x 6"H Concrete Vault Riser | 390 lbs | 1 | 780719 |
| V0604 | 2 | 4'W x 4'L x 12"H Concrete Vault Riser | 780 lbs | 1 | 780777 |
| C.U. | Fig | Description | Approx. Wt. | Qty | MID |
|---|---|---|---|---|---|
| V0605 | 1 | 4'W x 6'L x 6"H Concrete Vault Riser | 560 lbs | 1 | 5000634 |
| C.U. | Fig | Description | Approx. Wt. | Qty | MID |
|---|---|---|---|---|---|

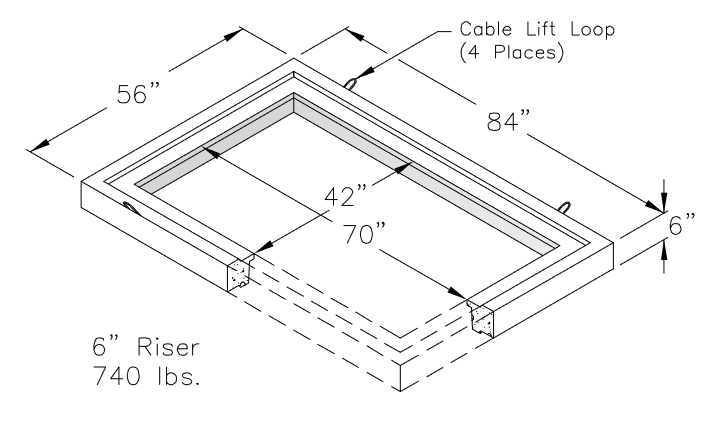

| V0606 | 1 | 4'8"W x 7'L x 6"H Concrete Vault Riser | 740 lbs | 1 | 5000635 |
| C.U. | Fig | Description | Approx. Wt. | Qty | MID |
|---|---|---|---|---|---|

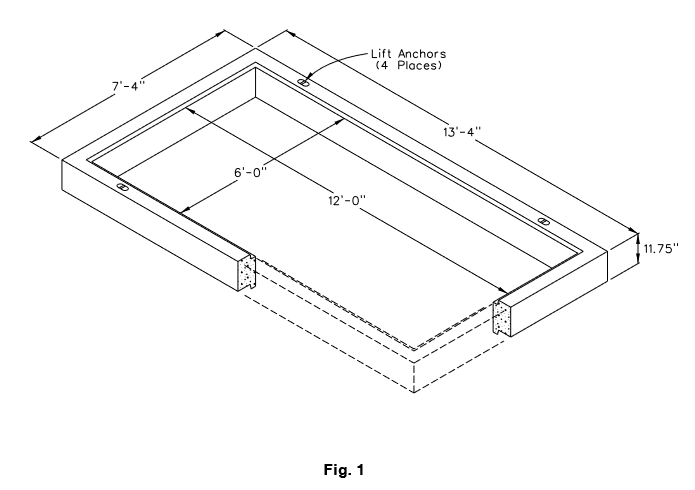

| V0607 | 1 | 6'8"W x 12'8"L x 12"H Concrete Vault Riser | 3,870 lbs | 1 | 5001391 |
