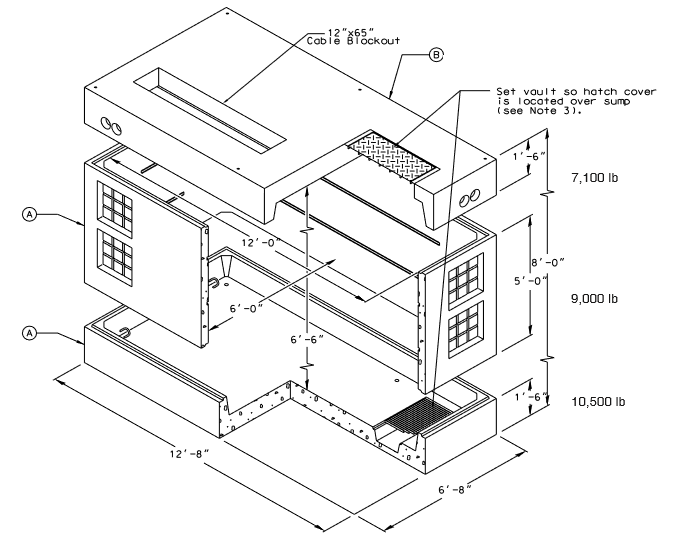

V0816 - Vault and Pad - Padmounted 600A 15kV 3Ø Primary Metering Cabinet using 1100 kcmil Al 15kV EPR Jacketed UG Power Cables

Revision 0
Dec 23, 2016

C.U. Item Section Description Qty MID
V0816 A
Bottom
Middle		 Vault, 2-Piece Concrete
6'8"W x 12'8"L x 1'6"H
6'8"W x 12'8"L x 5'H		 1 1003601
  B Cover 6'8"W x 12'8"L x 1'6"H w/ 12" x 65" Cable
Blockout & 36" Sq Diamond Plate Hatch Cover		 1 1002285



Notes:

  1. For use with 1100 kcmil Al 15kV 175 mil EPR Jckt UG Power Cables, see MID 1002726.
  2. When there is a delay between setting the vault and installing the primary metering cabinet, use solid cover MID 790023 (5'4"W x 6'L x 4"H) to cover the cable blockout in the vault cover.
  3. For the vault cover only, see MID 1002285.
  4. Orient the vault base section so the pump sump is located below the hatch cover.
  5. Section weights are approximate.
