V0815 - Vault and Pad - Padmounted 600A 15kV 3Ø Primary Metering Cabinet using 350 kcmil Al 15kV TRXLP Jacketed URD Cables

Revision 0
Dec 23, 2016

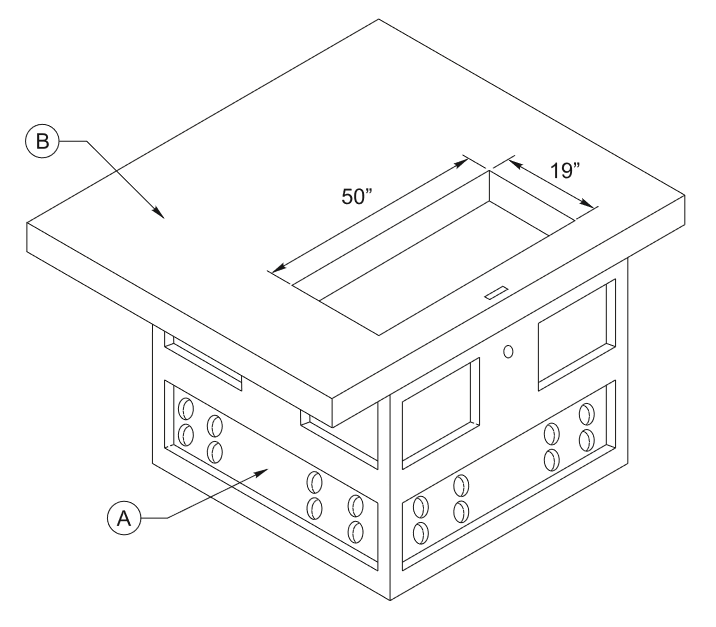

C.U. Item Description Qty MID
V0815 A Vault, Conc 4'8"W x 4'8"L x 3'6"H 1 1001722
  B Pad, Conc, Pri Mtr Cab 7'4"W x 5'2"L x 6"H w/ 19" x 50" Access 1 1000211

Notes:

  1. For use with 350 kcmil Al 15kV 175 mil TRXLP Jckt URD Cables, see MID 832065.
  2. For the vault cover only, see MID 1000211.
