V0814 - Vault & Pad for Padmounted Primary Metering Cabinet

Revision 2
Dec 23, 2016

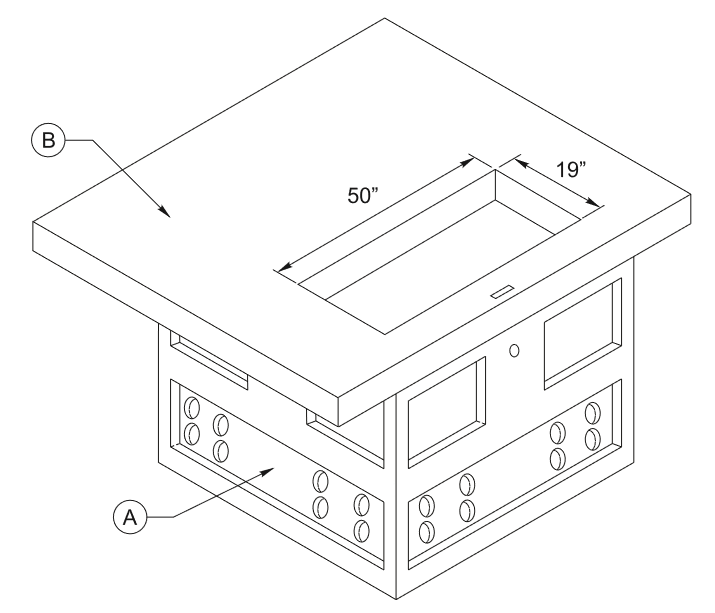

C.U. Item Description Qty MID
V0814 A Vault, Conc 4'8"W x 4'8"L x 3'6"H 1 1001722
  B Pad, Conc, Pri Mtr Cab 7'4"W x 5'2"L x 6"H w/ 19" x 50" Access 1 1000211

Notes:

  1. For use with 1/0 Al 15kV 175 mil TRXLP Jckt URD Cables, see MID 832130.
  2. For the vault cover only, see MID 1000211.
