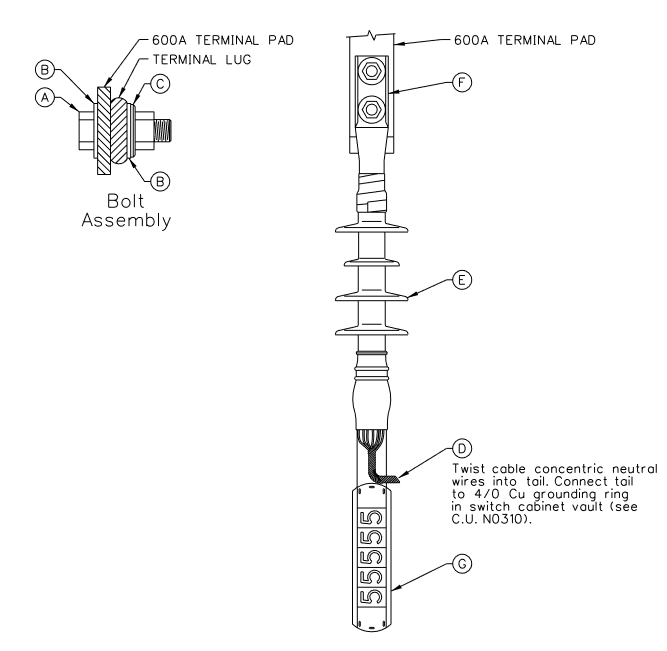

T1208 - 1100kcm 15kV Switch Cabinet Termination
Revision 7
Nov 25, 2014
Notes:
- Maintain a minimum 1/2" clearance between the cable termination skirts and the fiberglass barriers that function as the switch bay walls.
- Maintain a minimum 1" clearance between the skirts of cable terminations in adjacent switch bays.
| Compatible Unit | Item | Description | Qty | MID |
|---|---|---|---|---|
| T1208 | A | Bolt, SS 1/2" x 1-3/4" Hex Hd w/ Bronze Hex Nut | 2 | 103359 |
| B | Washer, SS Rd 1-3/8" Flat 9/16" Hole | 4 | 191627 | |
| C | Washer, SS Belleville 9/16" Hole | 2 | 191635 | |
| D | Connector, Cu C-Crimpit 3/0 Str - 4/0 Str to 1/0 Str - 2/0 Str | 1 | 1003001 | |
| E | Termination, Cable 1000 kcmil Al 15kV Jktd Drain Wire Shld | 1 | 777089 | |
| F | Terminal, Compression UG 1000 kcmil Str Al | 1 | 786452 | |
| G | Tag, Cable Number Plastic 1" Horiz Digits | 1 | ------ |
